Thickness Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Using a micrometer, check thickness of the disc rotor. If thickness is outside the standard, replace disc rotor.

Standard thickness: 28.0 mm (1.102 in)

Repair limit thickness: 26.0 mm (1.024 in)

Thickness variation: 0.015 mm (0.0006 in)

(measured at 8 positions)

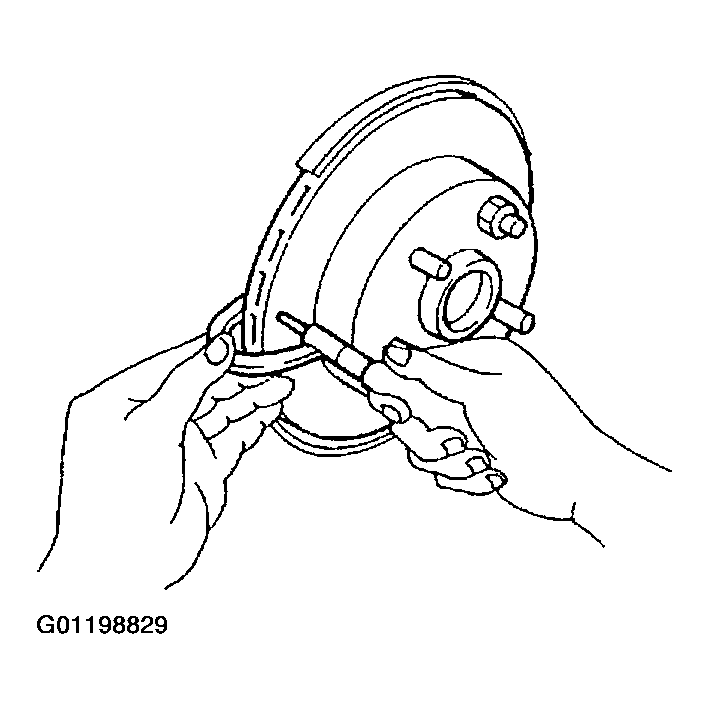

Fig 1: Checking Thickness Of Disc Rotor Using Micrometer

Courtesy of NISSAN MOTOR CO., U.S.A.
