Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

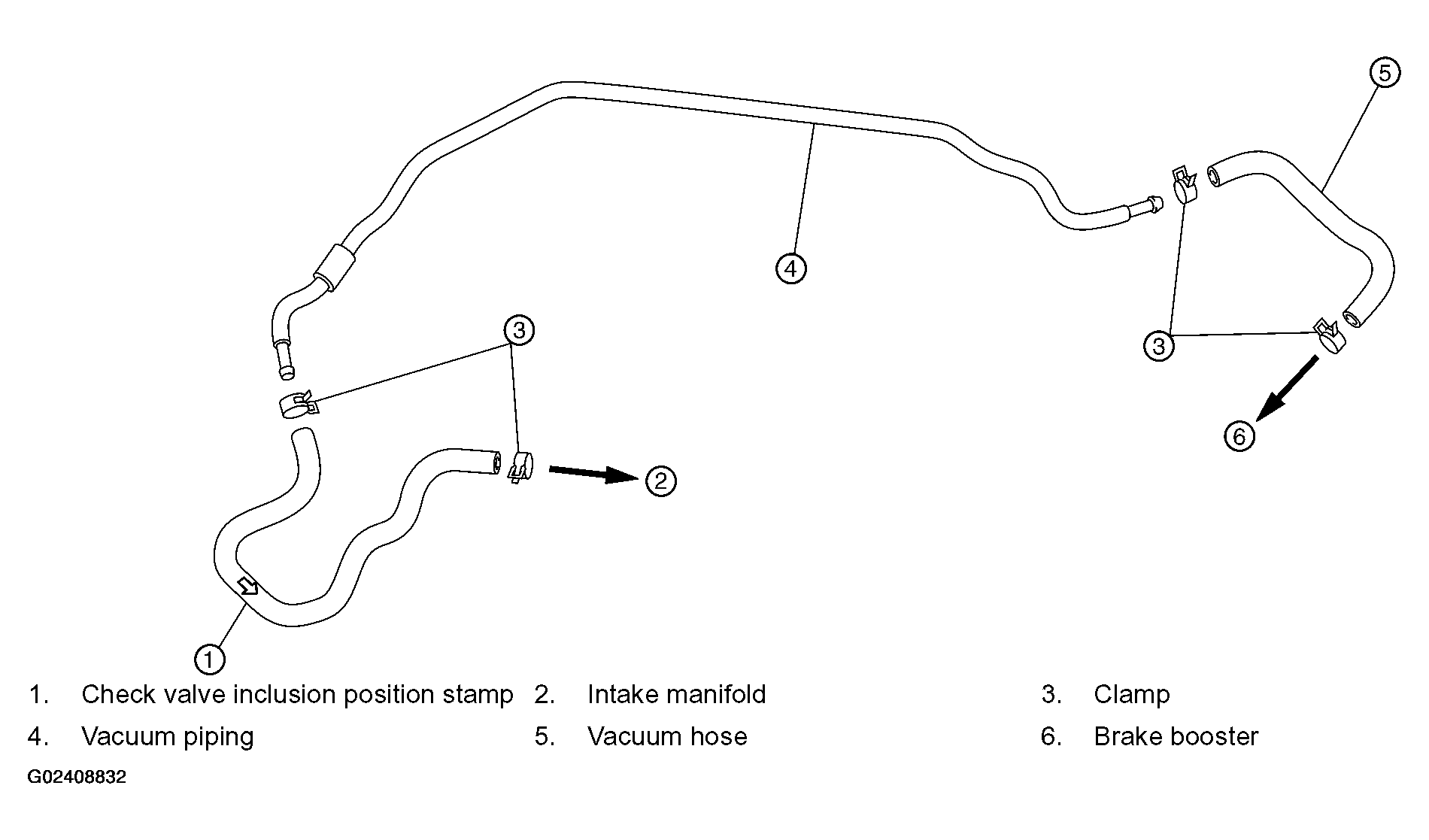

Fig 1: Exploded View Of Vacuum Lines
G02408832Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Because vacuum hose contains a check valve, it must be installed in the correct orientation. Refer to the stamp or label to confirm correct installation. The brake booster will not operate normally if the hose is installed in the wrong direction.
  • Insert the vacuum hose for at least 24 mm (0.94 in).
  • Never use lubricating oil during assembly.
Fig 2: Connecting Hose
G02408833Courtesy of NISSAN MOTOR CO., U.S.A.
