Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove undercover.
  2. Remove power steering oil pump belt from auto tensioner. Refer to "DRIVE BELTS ".
  3. Loosen hose clamp from suction hose and remove suction hose from power steering pump, then drain fluid. Refer to "HYDRAULIC LINE  ".

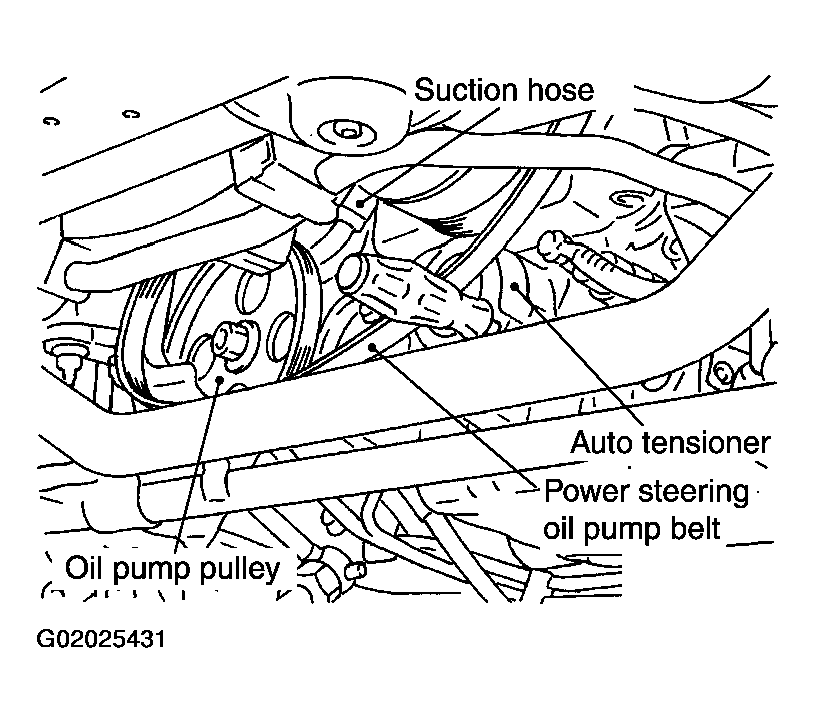

    Fig 1: Locating Oil Pump Pulley And Power Steering Oil Pump Belt
    G02025431Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove joint, then drain fluid. Refer to "HYDRAULIC LINE  ".
  5. Remove oil pump together with oil pump bracket. Refer to "HYDRAULIC LINE  ".
    Fig 2: Removing Oil Pump Bracket
    G02025432Courtesy of NISSAN MOTOR CO., U.S.A.
