Fluid Leakage And Fluid Level

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure that fluid is not leaking from the transfer assembly or around it.
  2. Check fluid level from the filler plug hole as shown.
    CAUTION: Do not start engine while checking fluid level.

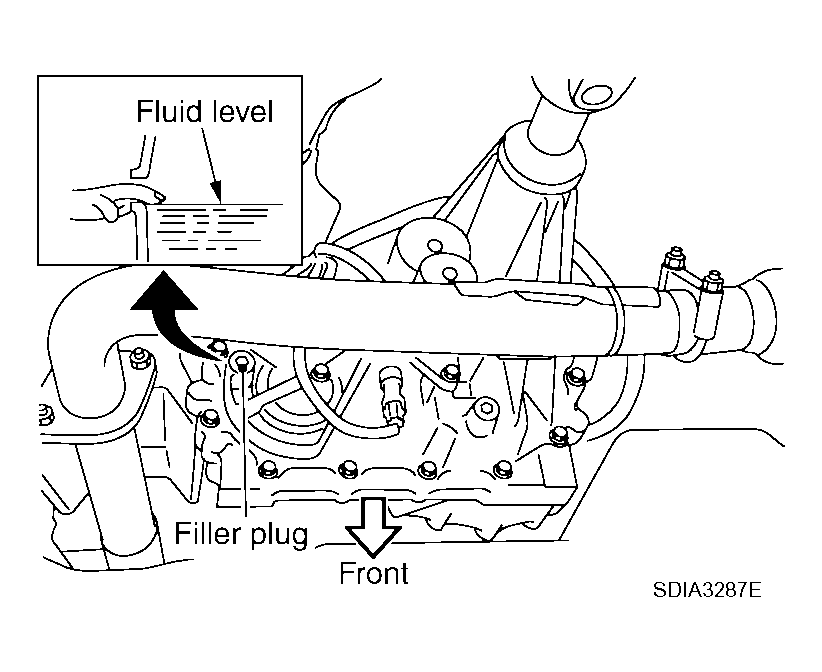

    3. Fig 1: Checking Fluid Level From Filler Plug Hole
    G04174786Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the filler plug with a new gasket to the transfer. Tighten to the specified torque. Refer to , "COMPONENTS ".
    CAUTION: Do not reuse gasket.
