Hand-Held Riveting Tool (M04 02 09)

WARNING: This page is about the Cooper Base, 2D Hatchback, Automatic, which is a different variant/trim than selected.

Publication date: 2009-04-16
Reference number: M04 02 09

HAND-HELD RIVETING TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 02 09, Date of Issue: April 16, 2009

MINI:	All
GROUP:	Tools and Equipment

SUBJECT

Hand-held Riveting Tool

SITUATION

Distribution of the following tool will not be through the Automatic Tool Shipment Program. Tools may be purchased through your Regional Distribution Center (RDC).

Hand-held riveting tool for blind rivet nuts, blind rivet screws, and blind rivet studs with coarse threads

Order P/N 81 43 2 155 739

Kit includes:

Hand rivet tool
M5, M6, M8, M10, M12 clinch nut inserts
M5, M6, M8 mounting screw inserts
5mm coarse thread stud insert
Aluminum storage case

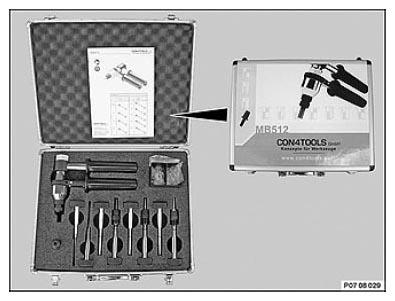

Fig 1: Hand-Held Riveting Tool Kit

Fig 2: Hand-Held Riveting Tool

Example Application:

Coarse thread screw riveted to underbody

Fig 3: Riveting Coarse Thread Screw To Underbody

Refer to the manual included with the kit for operating procedures.
