Left Rear Door Ajar Switch Connector - C715

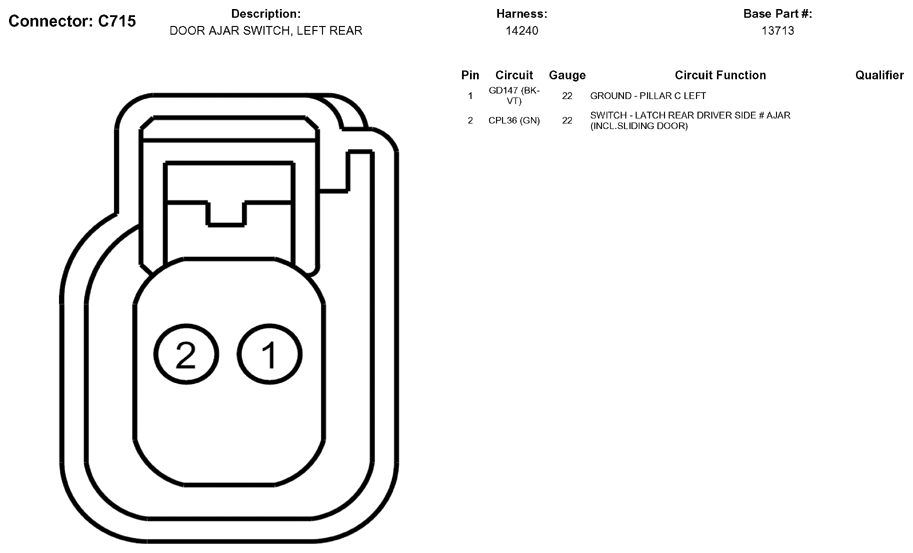

Fig 1: Left Rear Door Ajar Switch Connector End View (C715)

G05790058

Courtesy of FORD MOTOR CO.
