Removal & Installation

Disconnect negative battery cable. Remove intake air resonators. Disconnect CMP sensor harness connector. Remove CMP sensor retaining screw and CMP sensor. See Fig 1 . To install, reverse removal procedure.

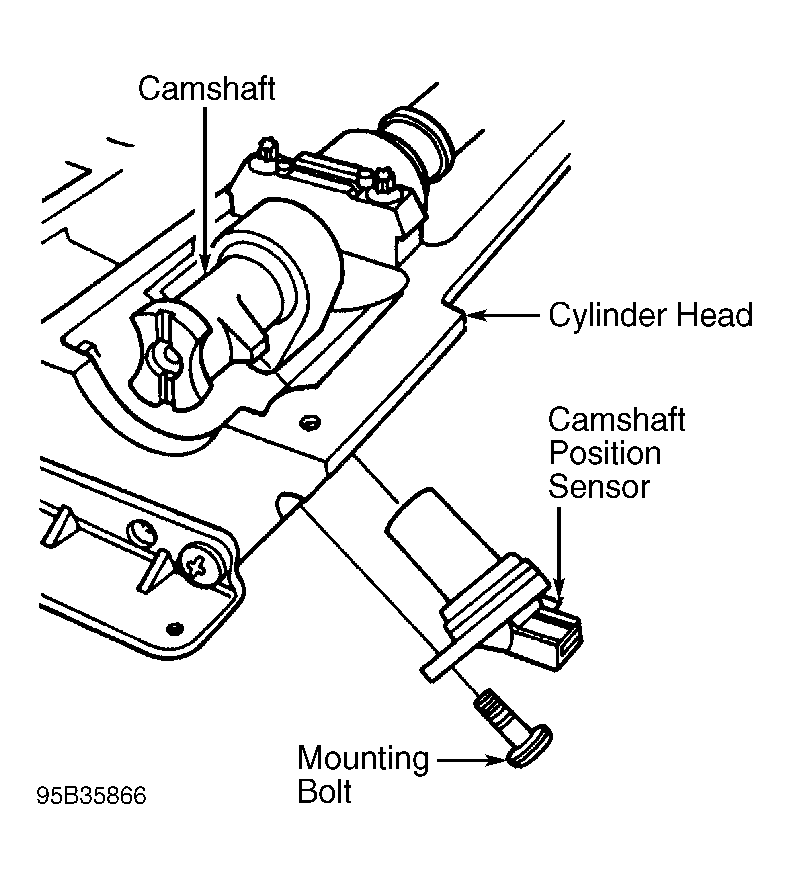

Fig 1: Removing CMP Sensor
G95B35866Courtesy of FORD MOTOR CO.
