Turning Effort Test (Ford Motor Co. Only)
With front wheels properly aligned and tire pressures correct, park vehicle on dry concrete and set parking brake. Idle engine for 2-3 minutes and turn steering wheel side to side several times to warm fluid. With engine running, attach a pull scale to rim of steering wheel. Measure pull required to turn wheel one complete revolution in each direction. Pull should be to specifications.
TURNING EFFORT SPECIFICATIONS
| Application |
Effort (Lbs.) |
| Granada & Monarch |
7.0 |
| All Other Models |
5.0 |

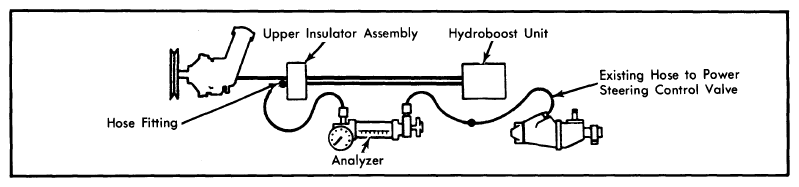

PRESSURE TEST SPECIFICATIONS
| Application |
Pump Output Pressure (psi) |
| Idle Pressure |
Relief Pressure |
| American Motors |
| |
4 & 6 Cyl. |
80-125 |
1000-1100 |
| Chrysler Corp. |
| |
6 Cyl. With A/C |
1000-1100 |
| |
V8 & 6 Cyl. Without A/C |
1200-1300 |
| Ford Motor Co. |
| |
HBC-W & - V |
150 |
950-1200 |
| |
HBC-U |
150 |
1100-1350 |
| |
HBC-T |
150 |
1200-1450 |
| |
HBC-X |
150 |
950-1200 |
| General Motors |
| |
Cadillac |
80-125 |
1425-1475 |
| |
Corvette |
80-125 |
900-1000 |
| |
All H Series |
80-125 |
750-850 |
| |
All Others |
80-125 |
1250-1350 |
