Remove/Install Alternator - AR15.40-P-5032MNE

Engine 177 in model 213

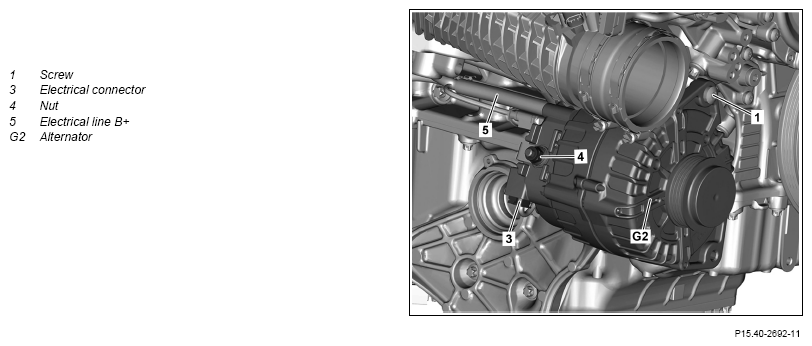

Fig 1: Alternator Components Location - Engine 177 In Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect ground line from battery.		AR54.10-P-0003LW
2	Remove guide pulley of poly-V-belt.		AR13.20-P-0011MNE
3	Release and disconnect electrical connector (3).
4	Remove contact protection of nut (4).
5	Remove electrical line B+ (5) from alternator (G2).	Nut, positive line to alternator	*BA15.40-P-1003-01T
6	Remove screw (1).	Tighten screw (1) slightly by hand.
7	Remove radiator package from radiator mounting bracket and press forwards in the direction of travel.
8	Remove alternator (G2) downward.
9	Install in the reverse order.
10	Check alternator (G2) for proper operation.		AR15.40-P-5001MNE

ALTERNATOR

Number	Designation		Engine 177
BA15.40-P-1003-01T	Nut, positive line to alternator	Nm	16
