Service: Service Indicator In Instrument Cluster Implausible At First Service (LI54.30-P-062219)

Publication date: 2018-08-14
Reference number: LI54.30-P-062219

SERVICE: SERVICE INDICATOR IN INSTRUMENT CLUSTER IMPLAUSIBLE AT FIRST SERVICE

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI54.30-P-062219 Version 3, Date of Issue: August 14, 2018

MERCEDES-BENZ:	Models AMG GT (190), C (205)
FUNCTION GROUP:	54.30 Instrument cluster, display instruments, hazard warning device
REASON FOR CHANGE:	edit

COMPLAINT

Service code/workshop code implausible at the first service (e.g. Service AX due, workshop code not 505). Various additional operations for Service A.

CAUSE

Incorrect data in instrument cluster (as-delivered state)

REMEDY

Model 205 vehicles up to code 805:

Manual initial startup of instrument cluster

Model 190 and model 205 vehicles as of code 806:

Manual initial startup of PTCU (CPC), see attachment, then perform manual initial startup of instrument cluster

If this remedy is ineffective, refer to the checklist and create a PTSS case and forward to engineering.

ATTACHMENTS

File	Description

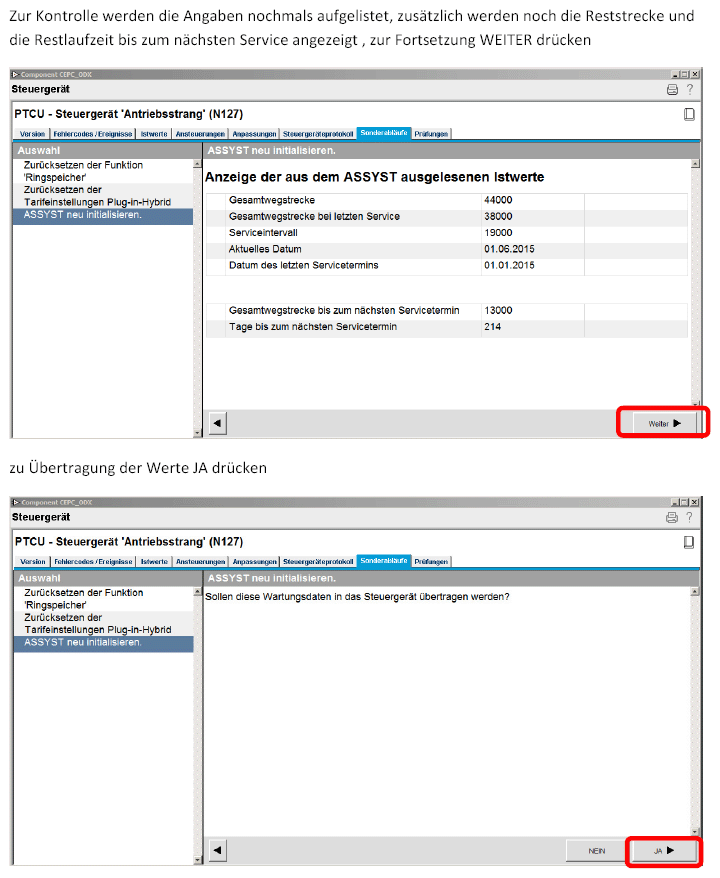

Sonderablauf_ASSYST_manuell_setzen.pdf	Instructions in German
Special_procedure_ASSYST_manually_set.pdf	Manual in English
Checklist.pdf	Checklist(s)

CONTROL UNIT/FAULT CODE

Control unit	Fault code	Fault text
A1 - Instrument cluster (IC) (IC222)	B127955	The maintenance program data are implausible. The component is not configured.

OPERATION NUMBERS/DAMAGE CODES

Op. no.	Operation text	Damage code	Note
		54201 G3	Use damage code 54201, enter ** as fault type and write in the fault, e.g. "Service display implausible", manually. Model 205, control unit up to code 805 in IC, as of code 806 in PTCU (CPC)
54-0650	12V
54-1011	QUICK TEST
54-0992	CODE
