Central Gateway Control Unit Connector End View (N93)

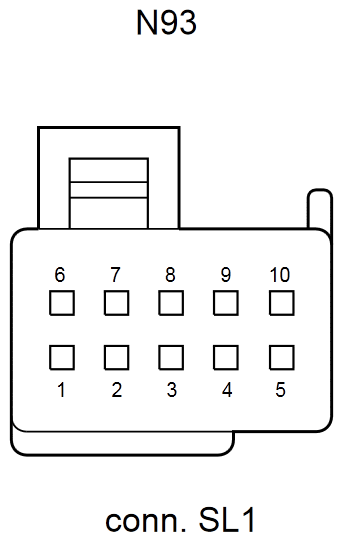

Fig 1: Central Gateway Control Unit Connector End View (N93)

G10974292

Courtesy of MERCEDES-BENZ USA
