Crankshaft position sensor position - GF07.04-P-4116-02D

Engine 104, 111

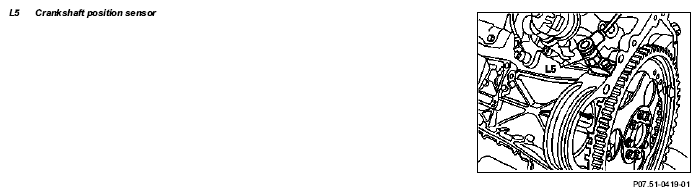

Fig 1: Identifying Crankshaft Position Sensor Position - Engine 104, 111

G04623853
