Removing/installing additional fuel tank - AR47.10-P-4200GH

MODEL 163.174 with ENGINE 113.981

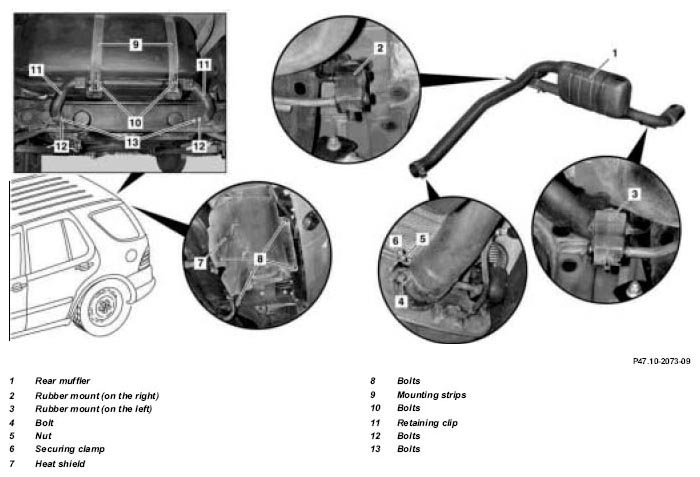

Fig 1: Identifying Rear Exhaust Componets

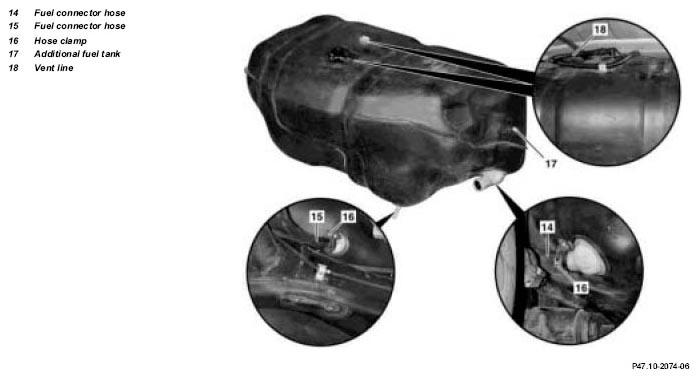

Fig 2: Identifying Additional Fuel Tank & Components

	Remove/install
	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
1	Drain fuel tank.	Through fuel pump.	AR47.10-P-4001GH
		With faulty fuel pump.	AR47.10-P-4000GH
			*BF47.10-P-1001-01A
2	Remove rear muffler (1)	Installation:  Check rubber mount (2, 3); replace if necessary. Replace nut (5) for bolt (4). Use emery cloth to clean connection points free of combustion and corrosion residues.
			*BA49.10-P-1009-01A
3	Remove heat shield (7)	Start by removing screws (8).
4	Detach fuel connector hoses (14, 15) at additional fuel tank (17)	Installation:  Check fuel connector hoses and hose clamps (16); replace if necessary. Ensure correct seating of the fuel connector hoses and hose clamps.
5	Unhook mounting strips (9) for additional fuel tank (17)	Slacken bolts (10) for this step. Installation:  Ensure correct seating of the mounting strips. Do not damage the vent line (18).
			*BA47.10-P-1001-01D
6	Fold down the retaining bracket (11)	To do this, remove bolts (12) and loosen bolts (13).
			*BA47.10-P-1003-01D
7	Lift out additional fuel tank (17)	Removal:  Hook vent line (18) on the upper side of the tank and detach.
8	Install in the reverse order
9	Dispose of fuel tank
	Disposing of fuel tanks		OS47.10-P-0001-01A

Fuel tank

Number	Designation		Model 163.174
BA47.10-P-1001-01D	Bolts for tensioning straps	Nm	20
BA47.10-P-1003-01D	Bolt securing retaining bracket to auxiliary fuel tank	Nm	20

Exhaust system

Number	Designation		Engines 112,113 in Model 163
BA49.10-P-1009-01A	Bolt, flange connection to exhaust pipe or exhaust manifold	Nm	20

Fuel tank

Number	Designation			Model 163.174
BF47.10-P-1001-01A	Fuel tank capacity	Total filling capacity	Liters	93
		Reserve capacity	Liters	12
