Front Door Latch Switch Inspection

  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  3. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
    2. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ).
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
    4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION ).
    5. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION ).
    6. Front inner handle (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION ).
    7. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION ).
  4. Verify that the continuity is as indicated in the table.
    G14468259Courtesy of MAZDA MOTORS CORP.

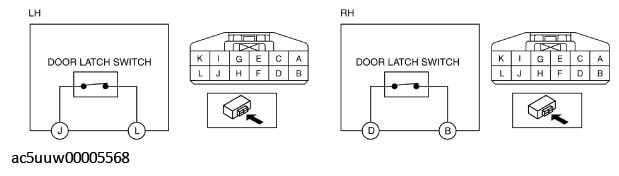

    G11426547Courtesy of MAZDA MOTORS CORP.
NOTE:
  • When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

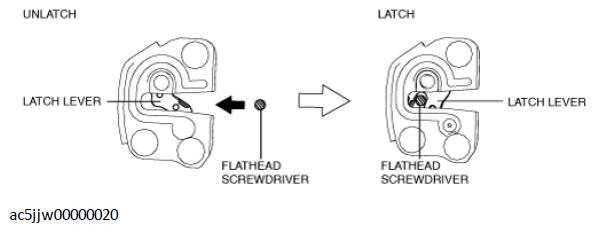

G11432667Courtesy of MAZDA MOTORS CORP.
