Rear Seat Warmer Control Unit Inspection
>>
System Diagram
System Diagram

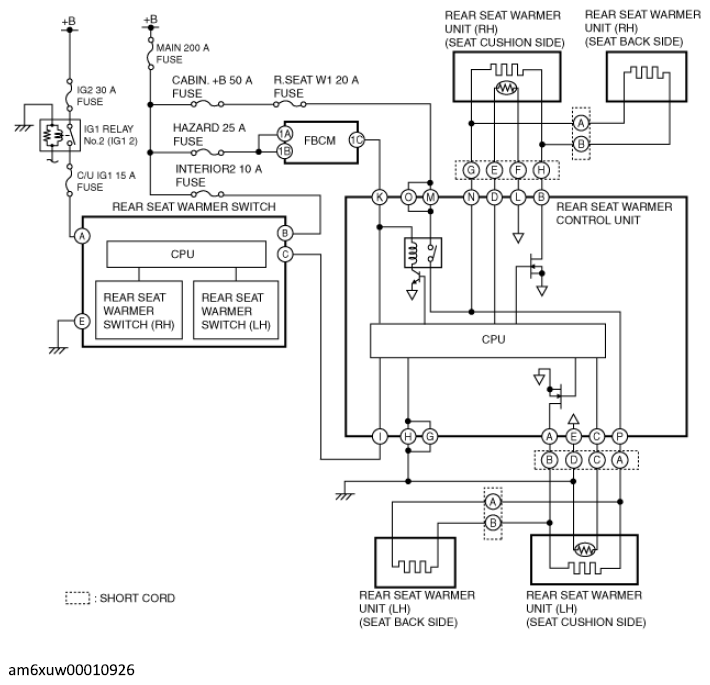

Fig 1: Rear Seat Warmer Control Unit System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
