Headlamp Alignment Sensor: Service and Repair

AUTO LEVELING SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Lift up the vehicle.

3. Disconnect the quick release connector. (charcoal canister side) Service and Repair Service and Repair Service and Repair

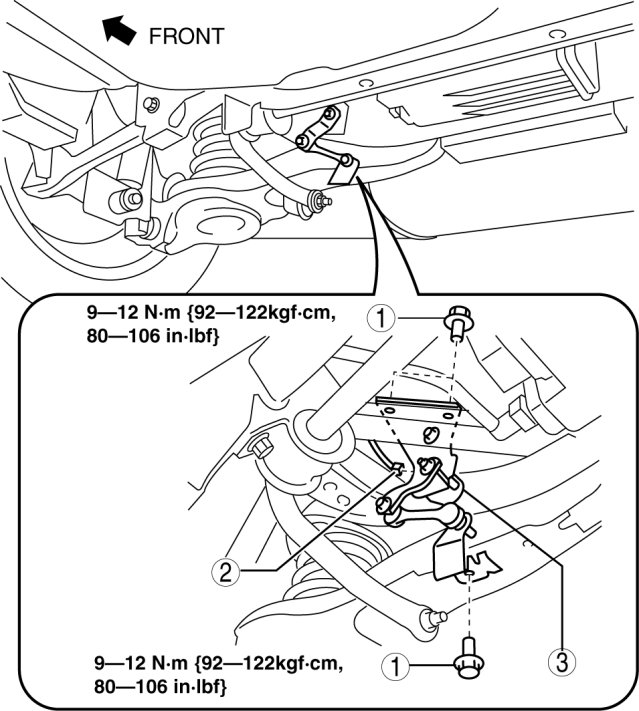

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

6. Perform the headlight auto leveling system initialization. Programming and Relearning
