DTC Inspection

DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM]

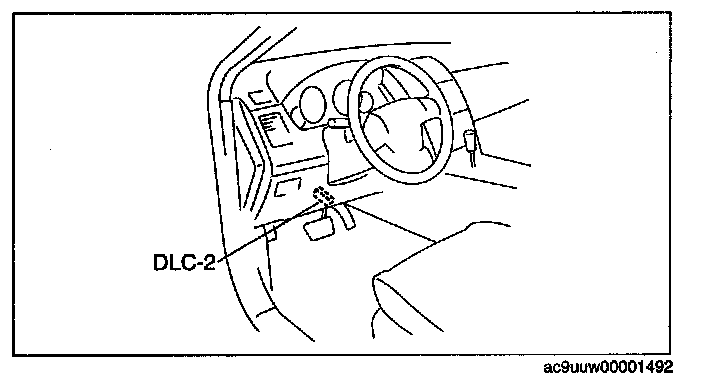

1. Connect the M-MDS to the DLC-2.




2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
1. Select "Self Test".
2. Select "Modules".
3. Select "RKE".

- When using the PDS (Pocket PC)
1. Select "Module Tests".
2. Select "RKE".
3. Select "Self Test".

3. Verify the DTC according to the directions on the screen.
- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

4. After completion of repairs, clear all DTCs stored in the keyless control module. (See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].) Clearing DTC
