Exterior Moulding / Trim: Service and Repair

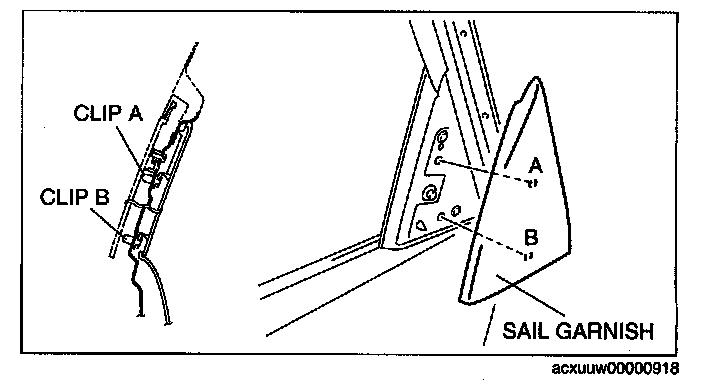

SAIL GARNISH REMOVAL/INSTALLATION






1. Pull the sail garnish outward and detach clips and B.
2. Remove the sail garnish.
3. Install in the reverse order of removal.
