Instrument Cluster Connector End View (C220B)

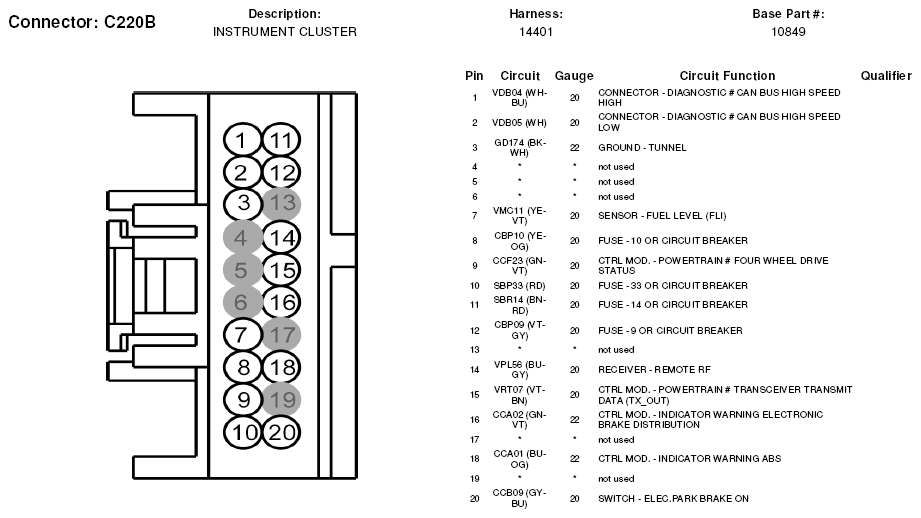

Fig 1: Instrument Cluster Connector End View (C220B)

G05603088
