Windshield Wiper Arm And Blade Removal/Installation: Notes

  1. Remove in the order indicated in the table.

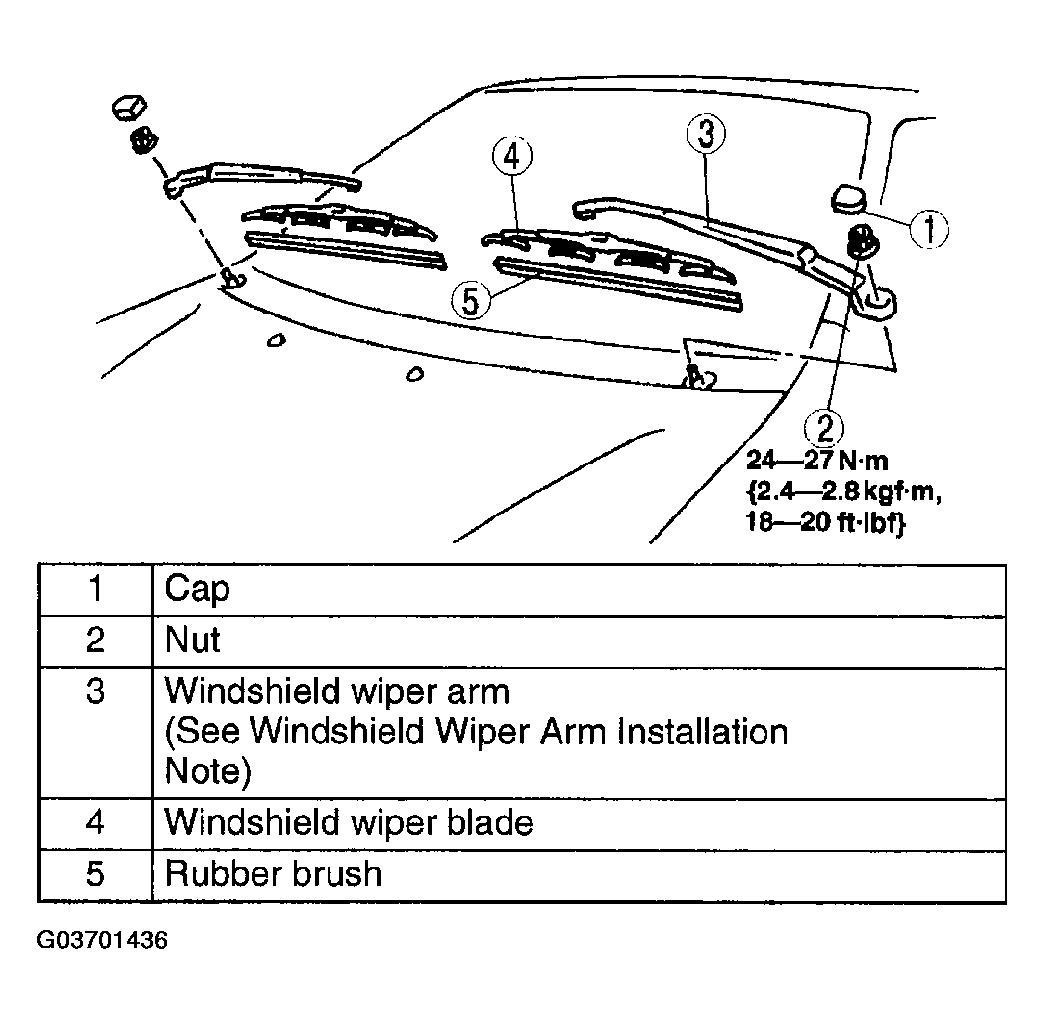

    Fig 1: Removing Windshield Wiper Arm And Blade - With Torque Specifications
    G03701436Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
