Rotor Assembly: Notes

  1. Assemble in the order indicated in the figure.

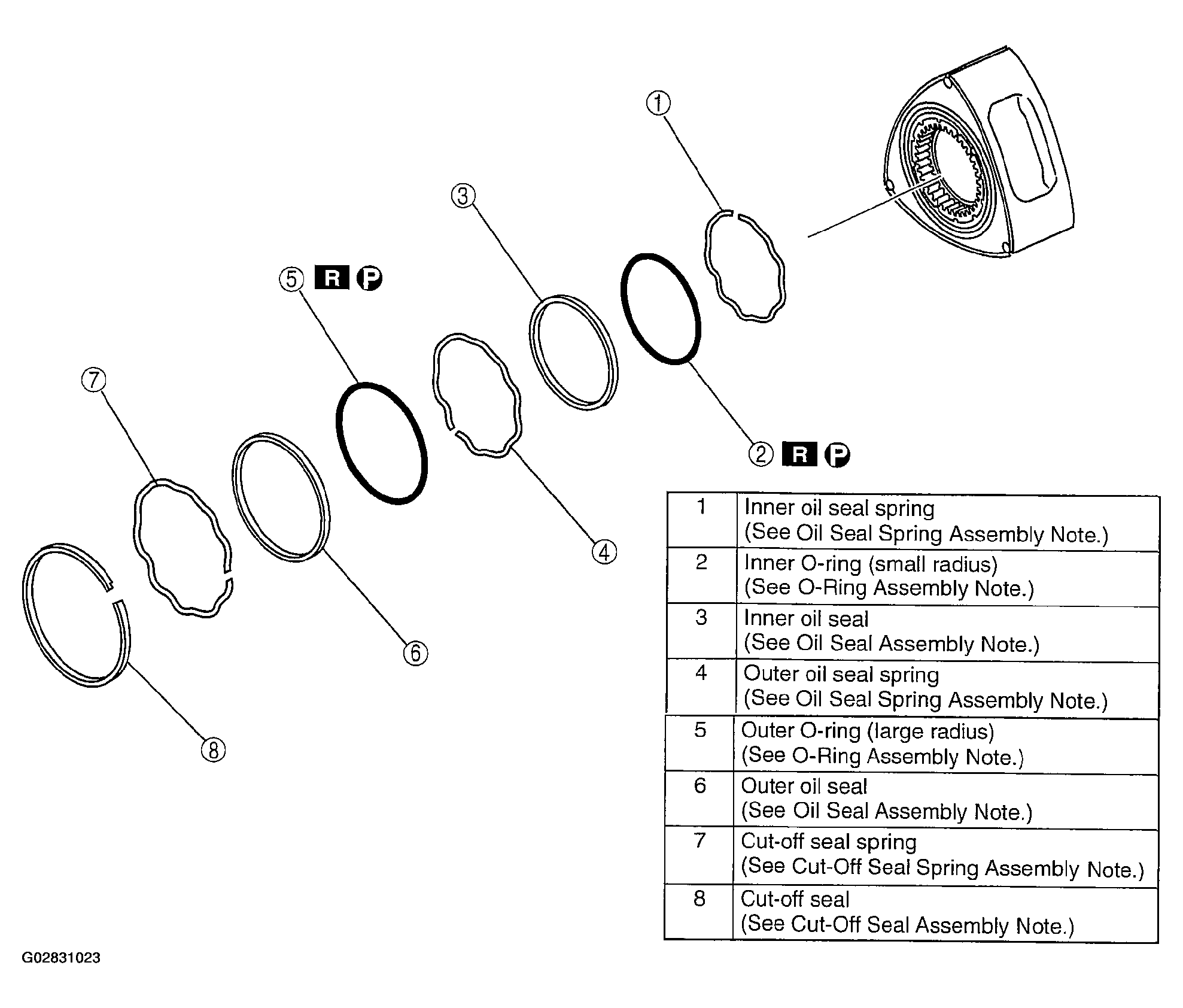

    Fig 1: Assembling Rotor
    G02831023Courtesy of MAZDA MOTORS CORP.
