Subwoofer Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the trunk side trim.
  3. Remove the window defroster noise filter.
  4. Disconnect the subwoofer connector.
  5. Remove the lateral bracket.
    Fig 1: Removing Lateral Bracket
    G01915521Courtesy of MAZDA MOTORS CORP.
  6. Remove the subwoofer.
    Fig 2: Removing Subwoofer
    G01915522Courtesy of MAZDA MOTORS CORP.
  7. Remove the main bracket.

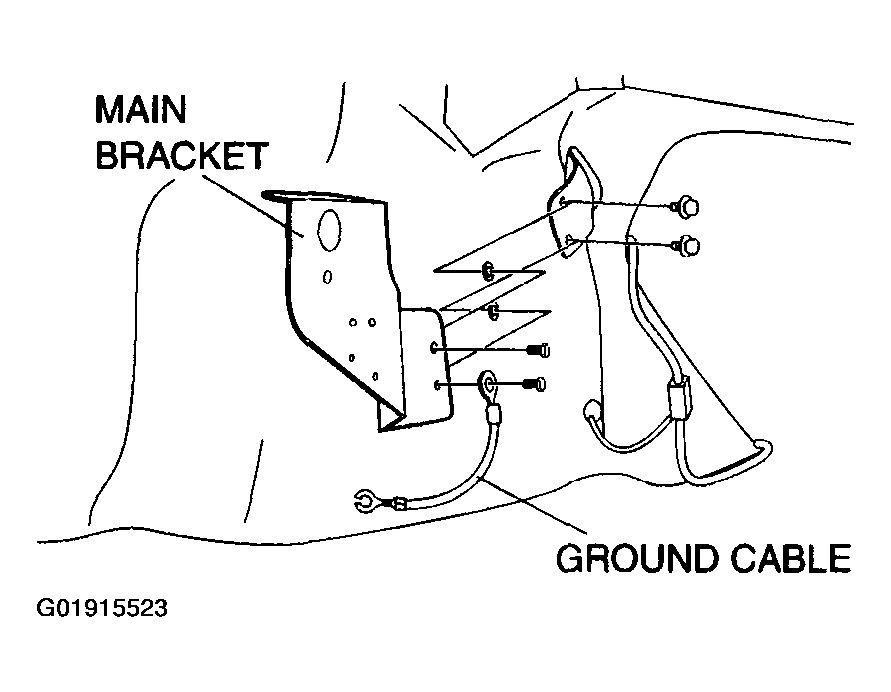

    Fig 3: Removing Main Bracket
    G01915523Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
