Diagnostic procedure

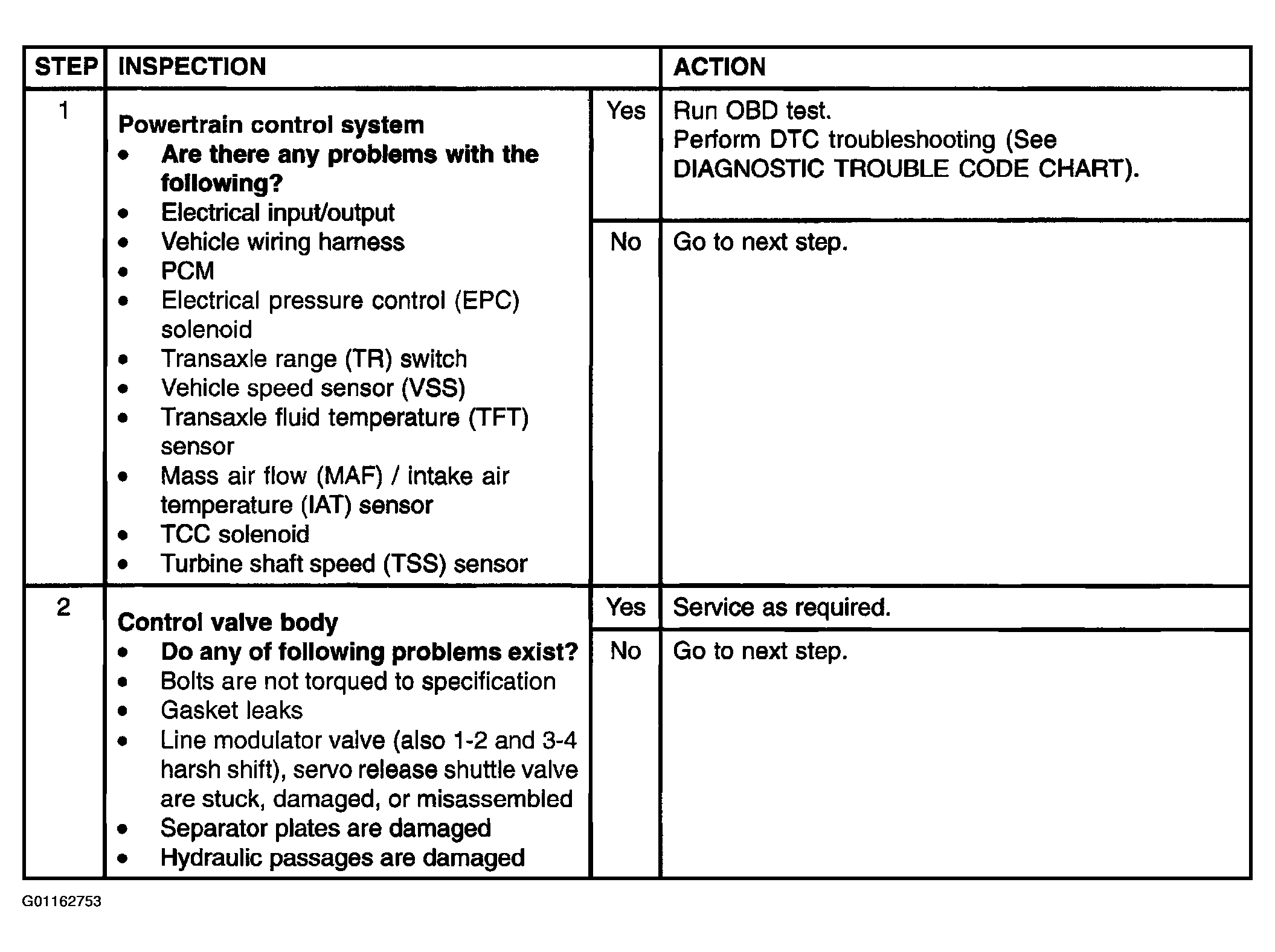

Fig 1: Pinpoint Test 23: Shift Concerns: Harsh 2-3 Shift (Steps 1-2)
G01162753Courtesy of MAZDA MOTORS CORP.
Fig 2: Pinpoint Test 23: Shift Concerns: Harsh 2-3 Shift (Steps 3-6)
G01162754Courtesy of MAZDA MOTORS CORP.
