Liftgate Window Latch: Installation

Fig 1: Position Liftgate Window Latch

Courtesy of MAZDA MOTORS CORP.

Position the liftgate window latch and loosely install the bolts.
Adjust the liftgate window latch.
1. Set the liftgate window glass flushness to 1.5 mm (0.06 in) under flush.

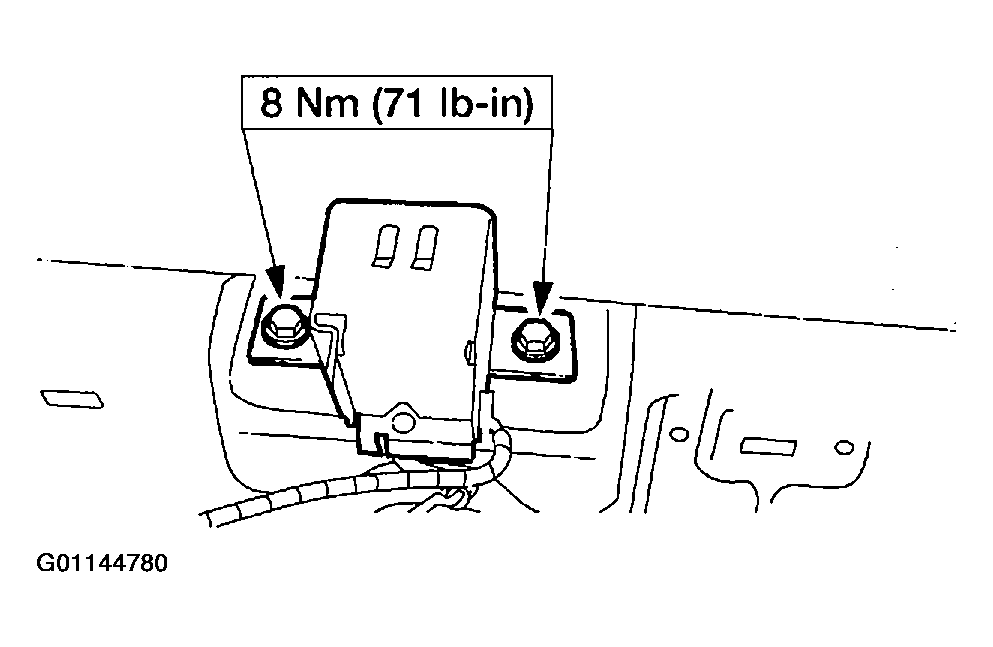

  Fig 2: Installing Liftgate Window Latch Bolts
  Courtesy of MAZDA MOTORS CORP.
Tighten the liftgate window latch bolts.

Fig 3: Connecting Liftgate Window Latch
Courtesy of MAZDA MOTORS CORP.
Connect the liftgate window latch.
1. Connect the liftgate window latch ajar switch electrical connector.
2. Connect the actuating rod and close the clip.
Install the liftgate trim panel.
