Transaxle Fluid Temperature Sensor

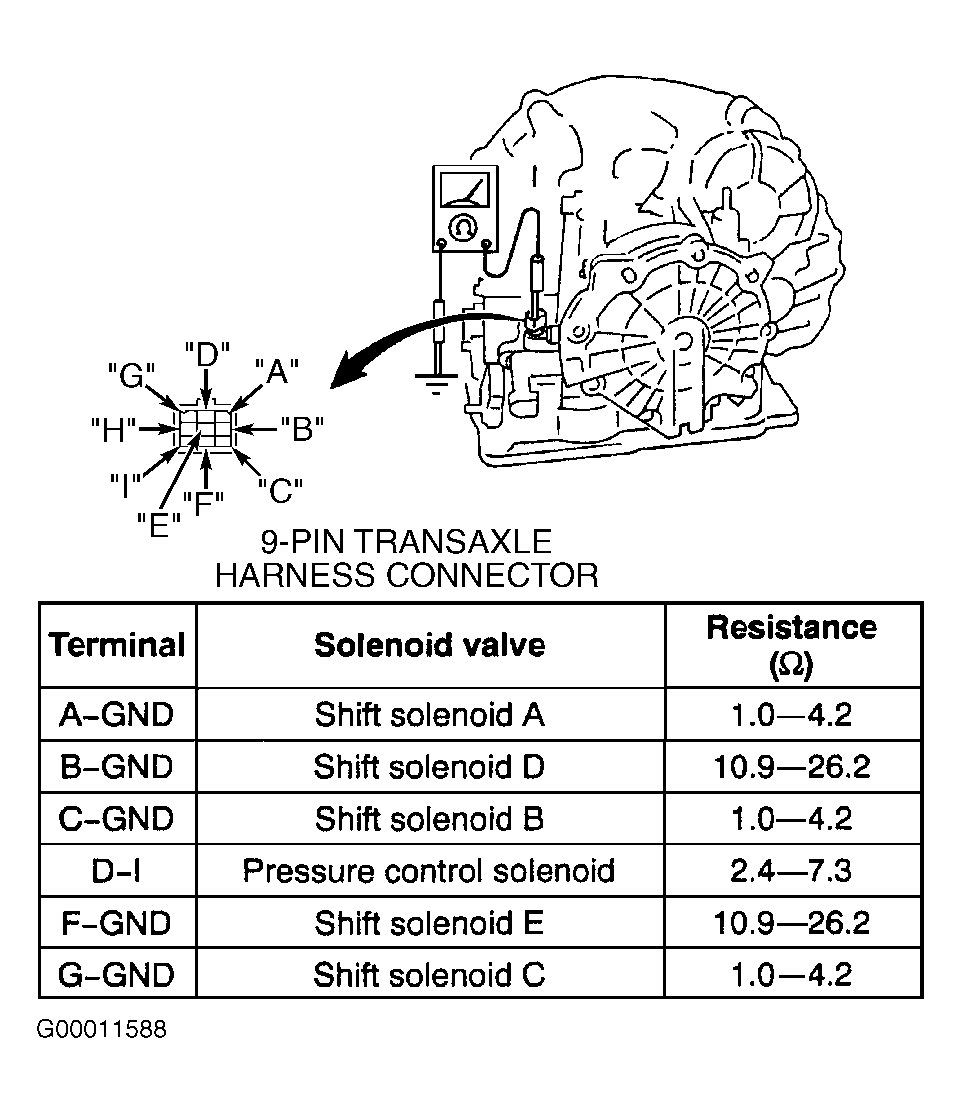

Disconnect negative battery cable. Remove fresh air duct and air cleaner assembly. Disconnect transaxle 9-pin harness connector. Connect ohmmeter test leads between transaxle 9-pin harness connector terminals "E" and "H". See Figure. If resistance is not within specification for temperature, replace TFT sensor. See TFT SENSOR RESISTANCE table.
TFT SENSOR RESISTANCE
| Fluid Temperature - °F (°C) | k/Ohms |
|---|---|
| -4 (-20) | 236-324 |
| 0 (32) | 84.3-110 |
| 68 (20) | 33.5-42.0 |
| 104 (40) | 14.7-17.9 |
| 140 (60) | 7.08-8.17 |
| 176 (80) | 3.61-4.15 |
| 212 (100) | 1.96-2.24 |
| 248 (120) | 1.13-1.28 |
| 266 (130) | .87-.98 |
