Quick Diagnostic Symptom Chart

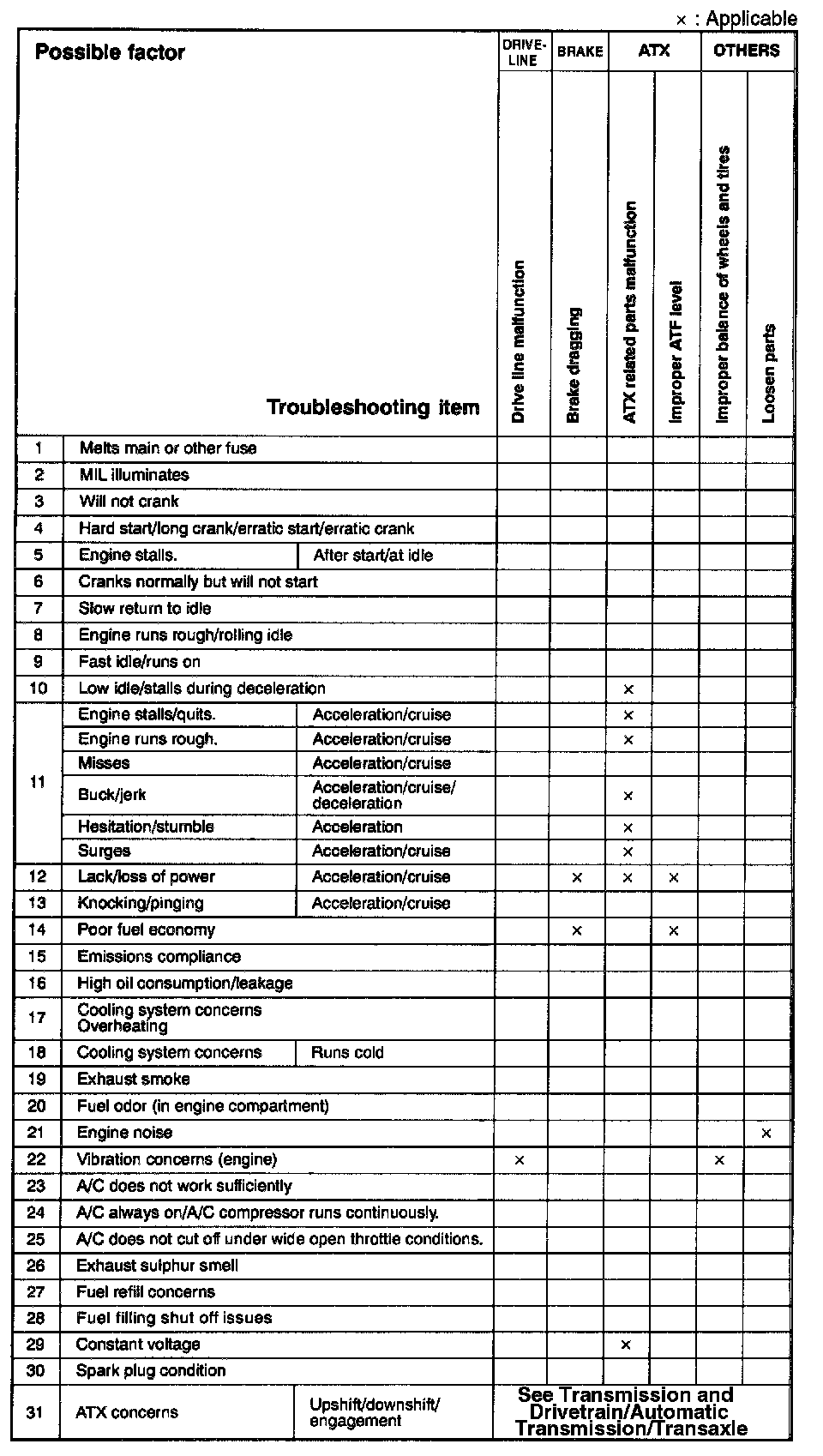

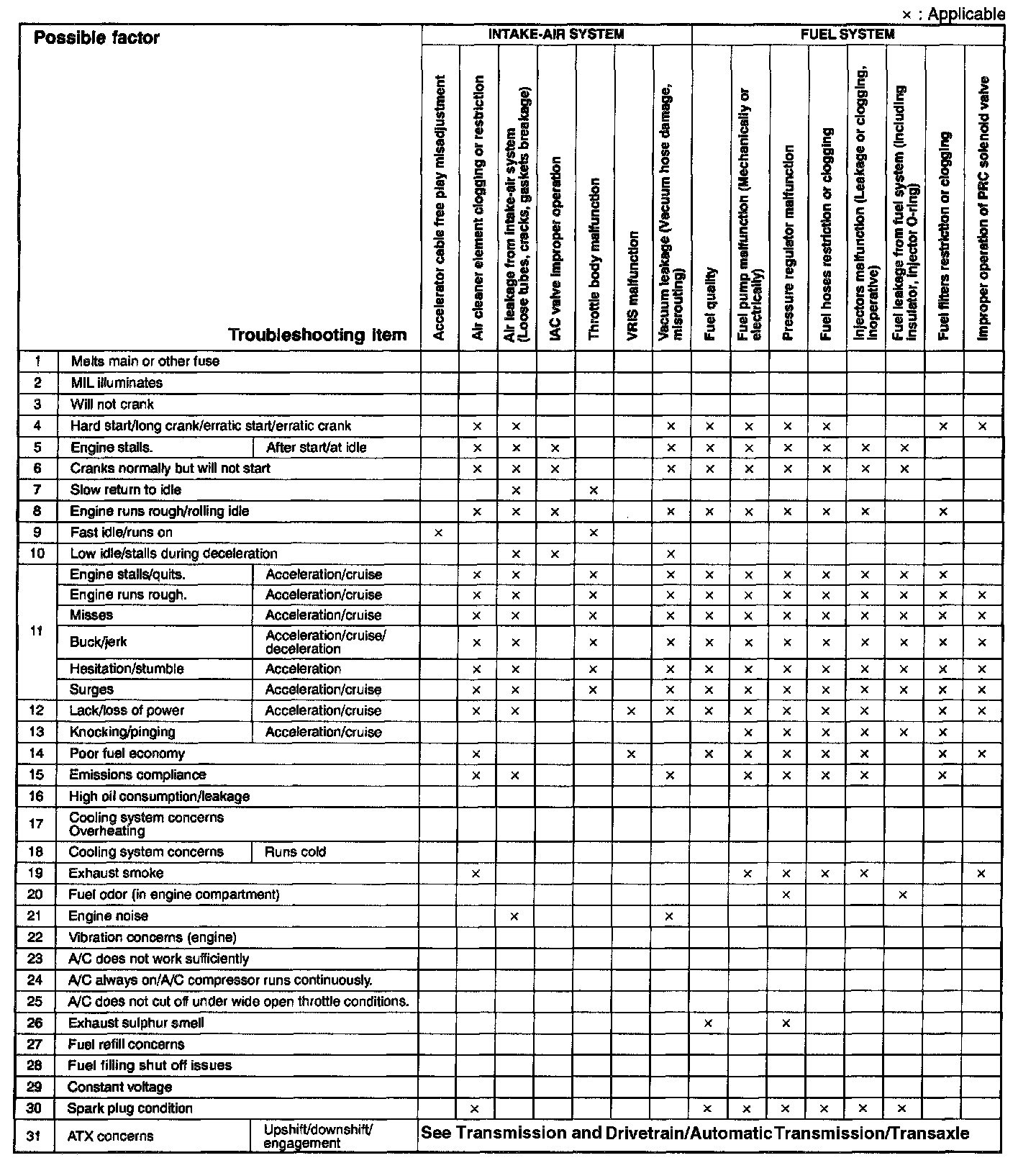

Symptom Quick Diagnosis Chart - Part 1:



Symptom Quick Diagnosis Chart - Part 2:



Symptom Quick Diagnosis Chart - Part 3:



Symptom Quick Diagnosis Chart - Part 4:



Symptom Quick Diagnosis Chart - Part 5:



Symptom Quick Diagnosis Chart - Part 6:
