B2500, B3000 & B4000 (2WD)

  1. To increase caster split, loosen lock nuts on bracket. Adjust caster set bolts forward. See Fig 1 .
  2. To decrease caster split, loosen lock nuts on bracket. Adjust caster set bolts rearward. See Fig 1 .

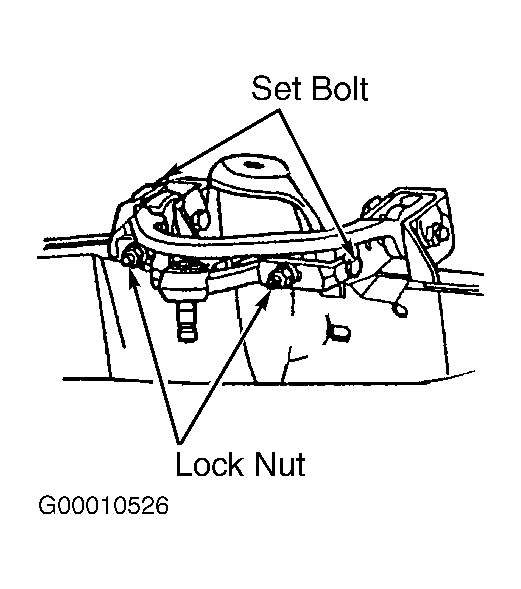

Fig 1: Adjusting Caster Split (B2500, B3000 & B4000 2WD)
G00010526Courtesy of MAZDA MOTORS CORP.
