RX7 Turbo

  1. Remove turbocharger intercooler. Disconnect TPS connector. Connect ohmmeter between TPS connector terminals "A" and "B". See Fig 1 .

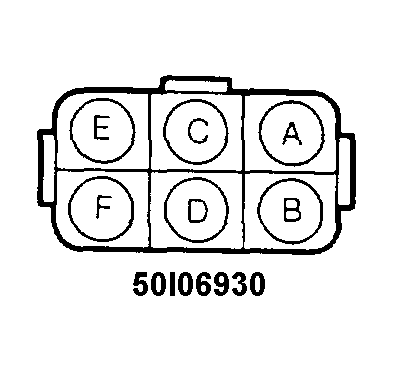

    Fig 1: Identifying TPS Connector Terminals (RX7)
    G50I06930Courtesy of MAZDA MOTORS CORP.
  2. Increase engine RPM until throttle lever separates from dashpot. If resistance is not 1800-3800 ohms when lever separates from dashpot, loosen lock nut and adjust dashpot. Tighten lock bolt.
