Inline Connector End View (C3049)
Inline Connector End View (C3049)

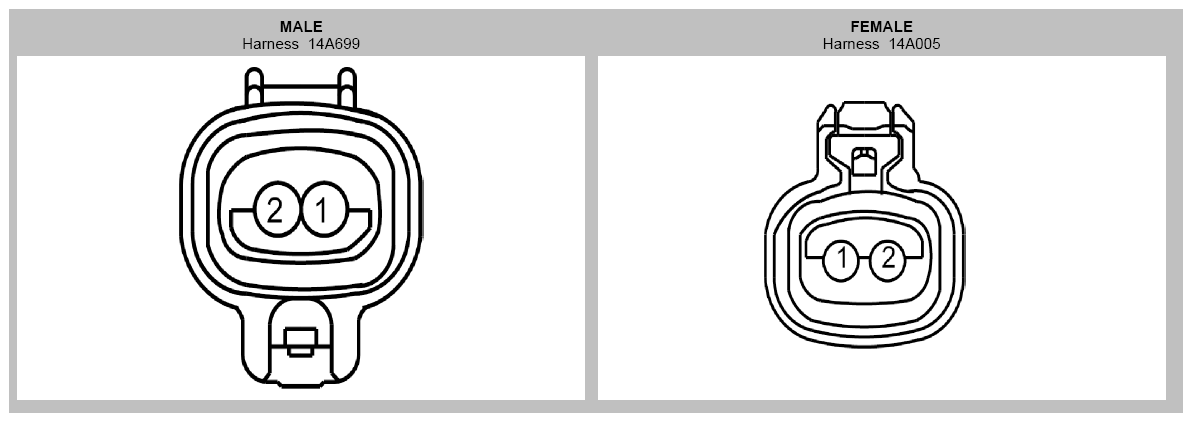

Fig 1: Identifying Inline Connector (C3049)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
CR120 (BU-OG)
20
2
RR120 (BN-GN)
20
Courtesy of FORD MOTOR CO.
