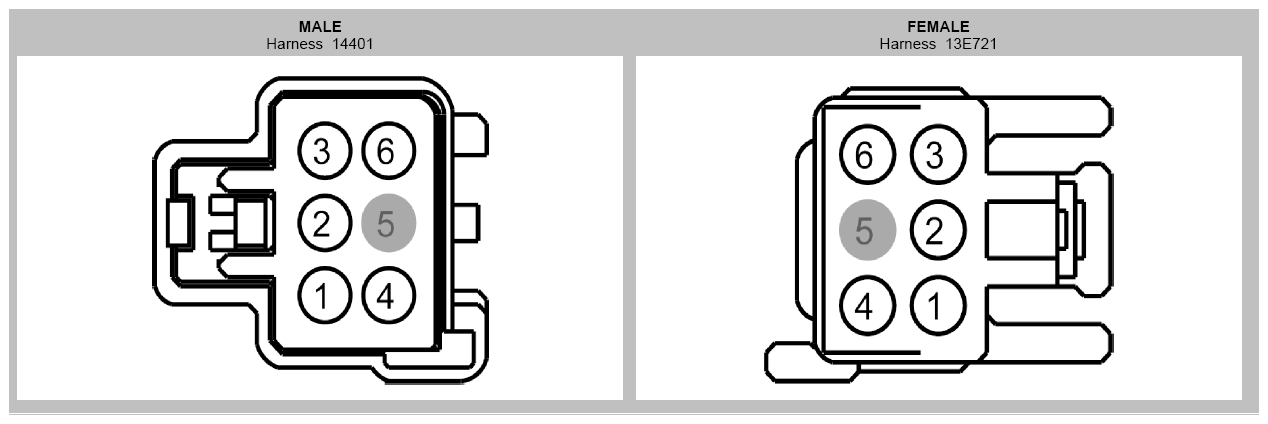

Inline Connector End View (C237)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CLN48 (YE-OG) | 22 | 13E721 |
| 1 | VLN51 (WH-OG) | 22 | 14401 |
| 2 | CLN49 (YE-GN) | 22 | 13E721 |
| 2 | VLN52 (WH-GN) | 22 | 14401 |
| 3 | CLN50 (YE-BU) | 22 | 13E721 |
| 3 | VLN53 (WH-BU) | 22 | 14401 |
| 4 | CLN58 (GY-OG) | 22 | 13E721 - MKX |
| 4 | VLN59 (BU-GY) | 22 | 14401 - MKX |
| 5 | * | * | |
| 6 | GD115 (BK-GY) | 20 | 14401 |
| 6 | GD908 (BK) | 18 | 13E721 |
| Available Pigtail Kits | |
|---|---|

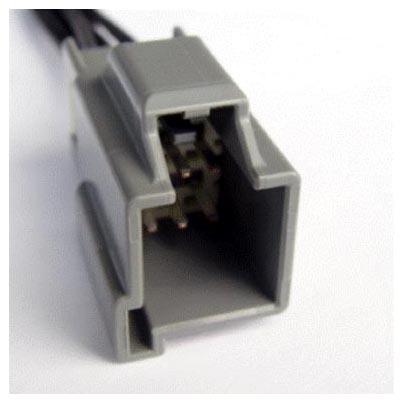

| Pigtail Kit Part Number WPT-444 | Service Part Number: 3U2Z-14S411-NBA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses:
|

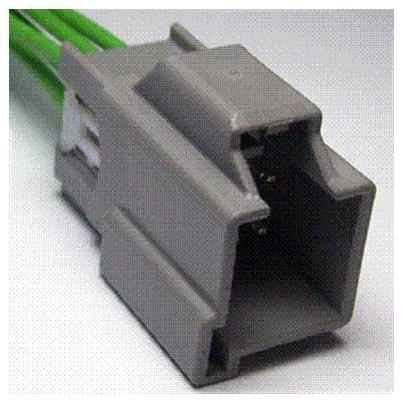

| Pigtail Kit Part Number WPT-1299 | Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses:
|
