Subframe - Front: 3.5L: Notes

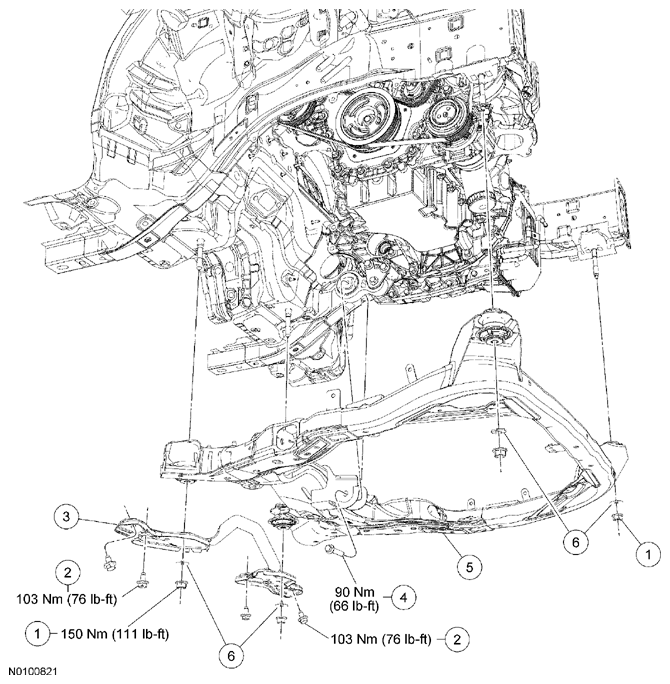

Fig 1: Exploded View Of Subframe With Torque Specifications (3.5L)
G07789457Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520416 Front subframe nuts (4 required)
2 3C496 Front subframe support bracket bolts (4 required)
3 5884 Subframe support bracket
4 W500545 Roll restrictor bolt
5 5C145 Front subframe
6 5A552 Front subframe washers
