Special Tool(s)

SPECIAL TOOLS CHART

Courtesy of FORD MOTOR CO.

Wrench, Fuel Tank Sender Unit
310-123

106L (28 Gal) Fuel Tank

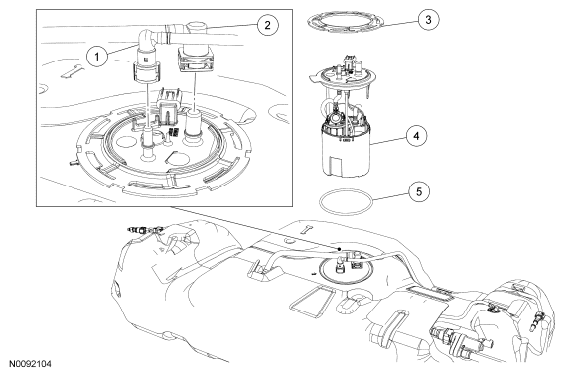

Fig 1: Exploded View Of Fuel Pump Module - 106L (28 Gal)

Courtesy of FORD MOTOR CO.

ITEM PART NUMBER DESCRIPTION CHART

Item	Part Number	Description
1	-	Fuel supply tube-to-Fuel Pump (FP) module quick connect coupling (part of 9J337)
2	-	Fuel Tank Pressure (FTP) sensor and vapor tube assembly-to- FP module quick connect coupling (part of 9C015)
3	9C385	FP module locking ring
4	9H307	FP pump module
5	9417	FP module O-ring seal

127L (33.5 Gal) Fuel Tank

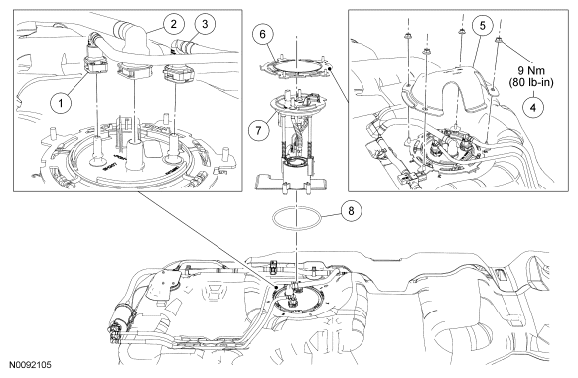

Fig 2: Exploded View Of Fuel Pump Module With Torque Specifications - 127L (33.5 Gal)

Courtesy of FORD MOTOR CO.

ITEM PART NUMBER DESCRIPTION CHART

Item	Part Number	Description
1	-	Fuel supply tube-to-Fuel Pump (FP) module quick connect coupling (part of 9J337)
2	-	Fuel Tank Pressure (FTP) sensor and vapor tube assembly-to- FP module quick connect coupling (part of 9C015)
3	-	Fuel return tube-to- FP module quick connect coupling (part of 9J337)
4	-	FP module cover nut (4 required)
5	9B007	FP module cover
6	9C385	FP module locking ring
7	9H307	FP pump module
8	9417	FP module O-ring seal
