Occupant Classification Sensor 3 Connector - C3330

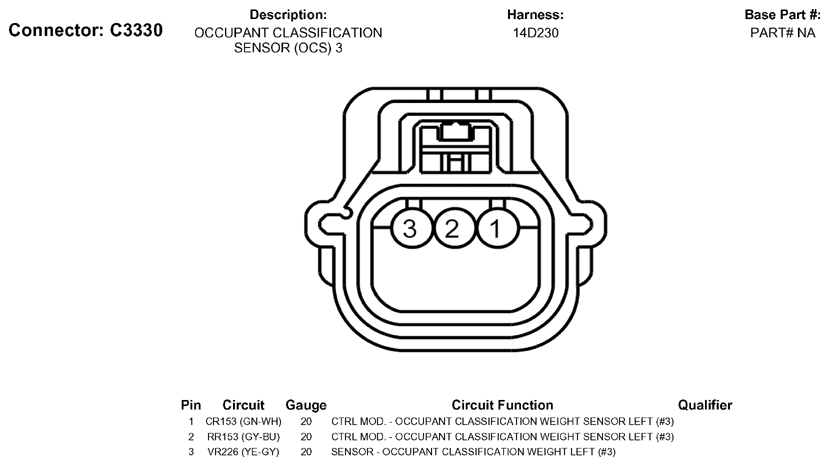

Fig 1: Occupant Classification Sensor 3 Connector End View (C3330)

G05786105

Courtesy of FORD MOTOR CO.
