Passenger Side Front Seat Control Switch Connector End View - C3190A

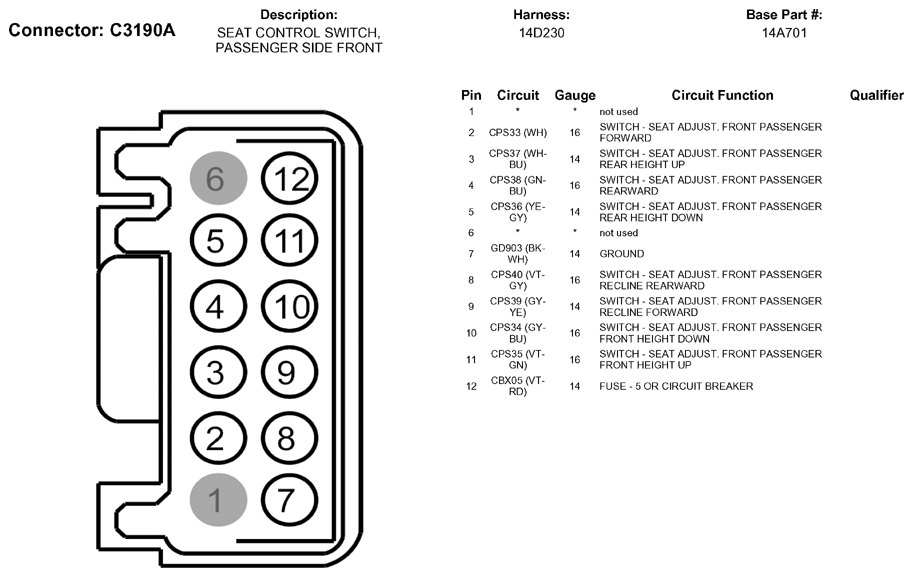

Fig 1: Passenger Side Front Seat Control Switch Connector End View (C3190A)

G05786084

Courtesy of FORD MOTOR CO.
