Home >> Lincoln >> 2008 >> Navigator 4WD V8-5.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Diagrams >> Heated Oxygen Sensor (HO2S) #21

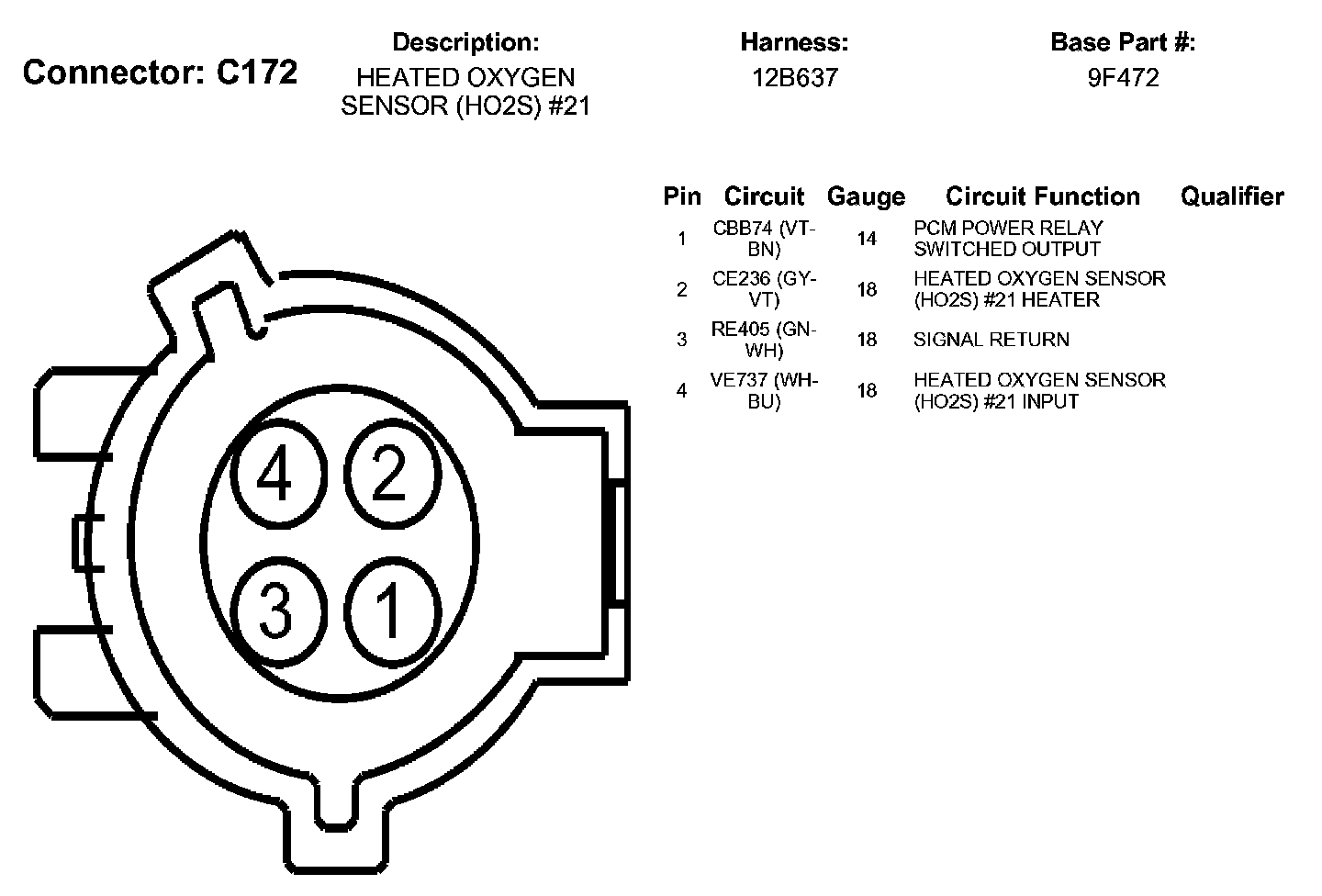

Heated Oxygen Sensor (HO2S) #21

C172:
