Fuel Line Fittings - Push Release Connector: Connect

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the fitting and the tube for damage. Remove any dirt or obstructions.
  2. Apply a light coat of clean engine oil to the male tube end.
  3. Insert the tube in the fitting and push them together until a click is heard.

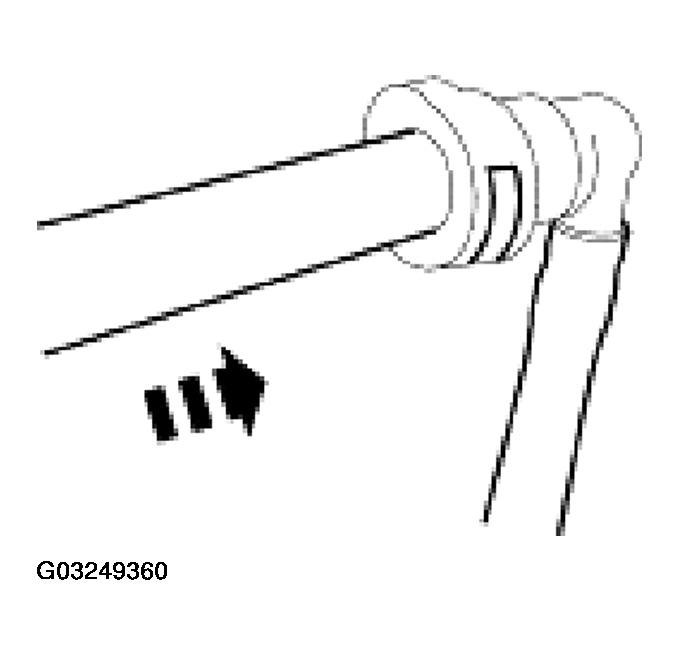

    Fig 1: Connecting Push Release Connector Fitting
    G03249360Courtesy of FORD MOTOR CO.
  4. Pull on the connection to make sure it is fully engaged.
