Camshaft Roller Follower: Removal

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve covers. For additional information, refer to VALVE COVER RH  or VALVE COVER LH .
  2. Position the piston of the cylinder being repaired at the bottom of the stroke.
  3. Install the special tool between the valve spring coils to prevent valve stem seal damage.

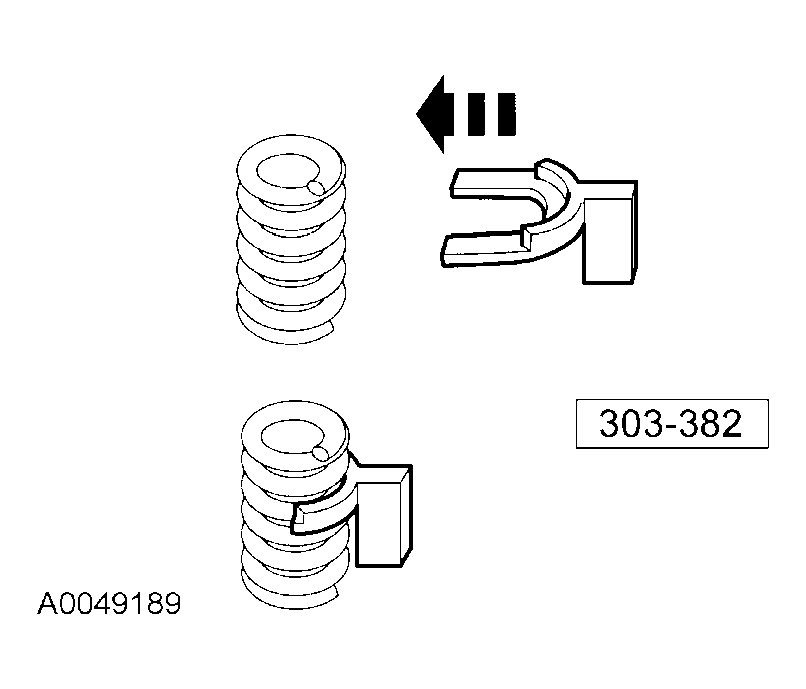

    Fig 1: Installing Special Tool Between Valve Spring Coils
    G03881896Courtesy of FORD MOTOR CO.
  4. Use the special tool to compress the valve springs and remove the cam roller followers.
Fig 2: Removing/Installing Camshaft Roller Followers
G03913933Courtesy of FORD MOTOR CO.
