Home >> Lincoln >> 1987 >> Continental V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> System Diagram >> With Keyless Entry

With Keyless Entry

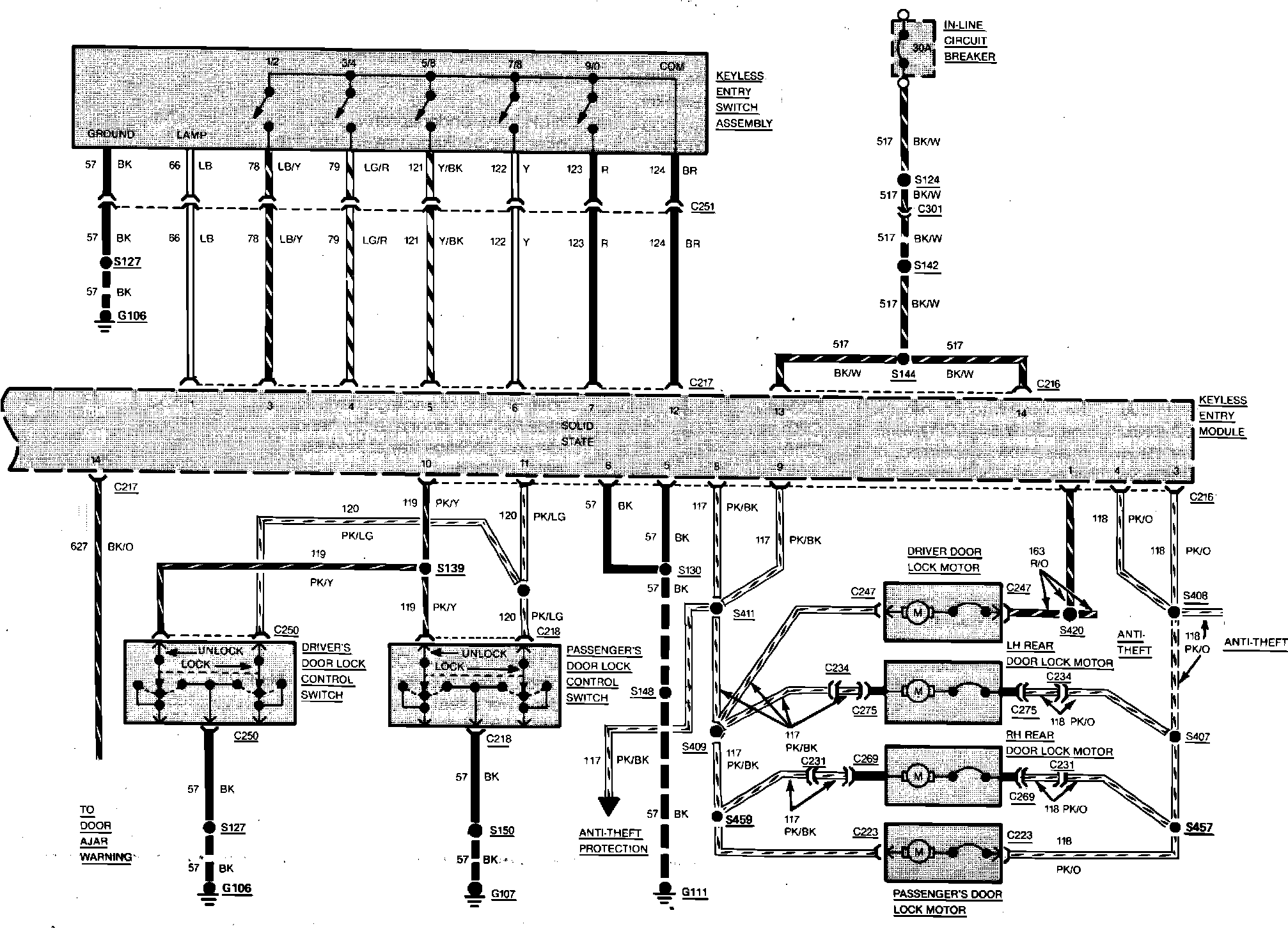

Fig. 70 Power Door Locks Wiring Circuit (Part 1 of 2). Continental W/Keyless Entry System:

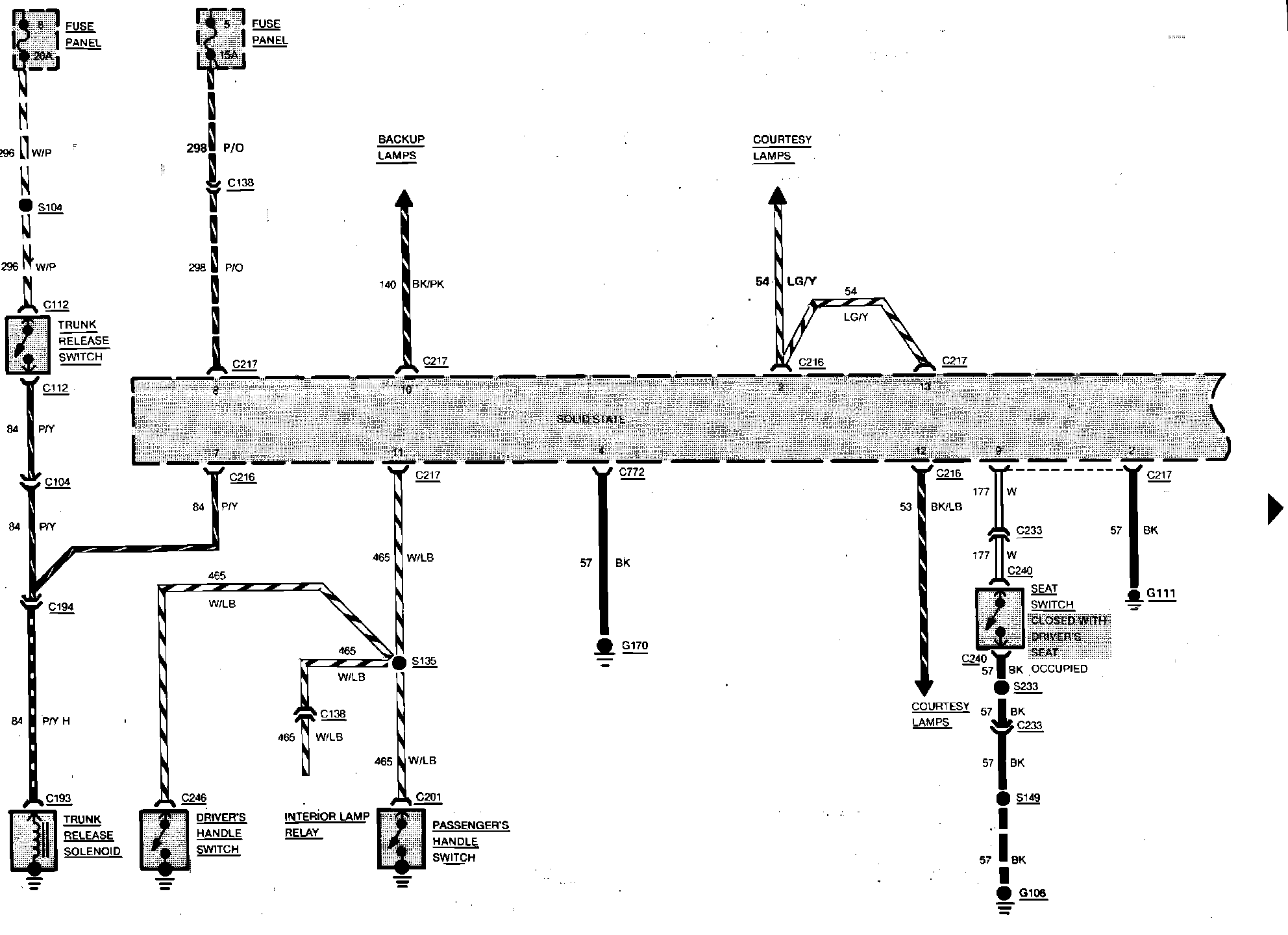

Fig. 70 Power Door Locks Wiring Circuit (Part 2 of 2). Continental W/Keyless Entry System:
