Removal [05/2023 - ]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]
DISCHARGE FUEL SYSTEM PRESSURE
Refer to PRECAUTION [05/2023 - ]
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [05/2023 - ]
REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to REMOVAL [05/2023 - ]
REMOVE FUEL PUMP FILTER
See step 3

REMOVE FUEL MAIN VALVE ASSEMBLY

Remove the fuel main valve assembly (for Low Pressure).

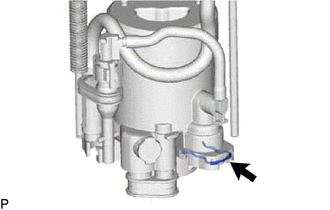

Remove the clip from the fuel suction plate sub-assembly (fuel filter).

GTY811518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not damage the fuel suction plate sub-assembly (fuel filter).

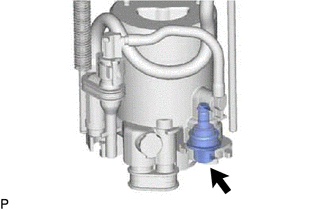

Remove the fuel main valve assembly (for Low Pressure) from the fuel suction plate sub-assembly (fuel filter).

GTY835245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not damage the fuel suction plate sub-assembly (fuel filter).

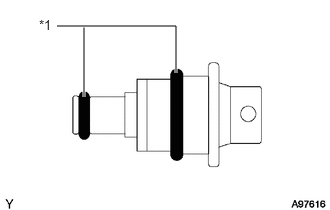

Remove the 2 O-rings from the fuel main valve assembly (for Low Pressure).

GTY809151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

O-ring

Remove the fuel main valve assembly (for High Pressure).

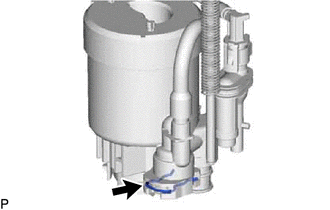

Remove the clip from the fuel suction plate sub-assembly (fuel filter).

GTY811521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not damage the fuel suction plate sub-assembly (fuel filter).

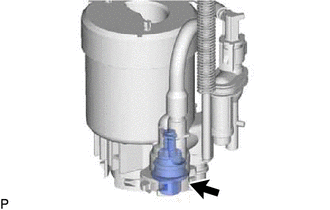

Remove the fuel main valve assembly (for High Pressure) from the fuel suction plate sub-assembly (fuel filter).

GTY835244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not damage the fuel suction plate sub-assembly (fuel filter).

Remove the 2 O-rings from the fuel main valve assembly (for High Pressure).

GTY809151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

O-ring
