Components [08/2014 - ]: Illustration

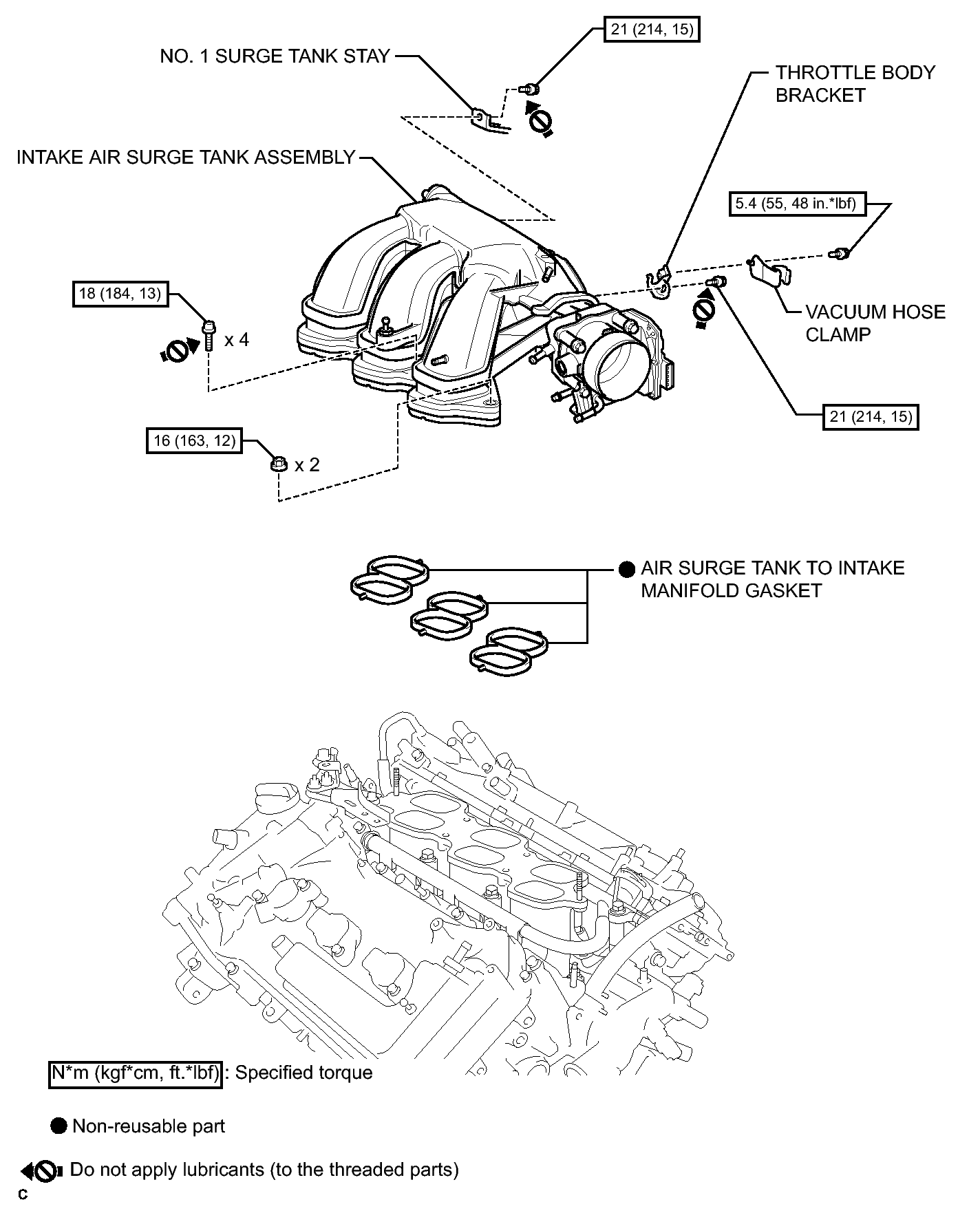

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
GTY414916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

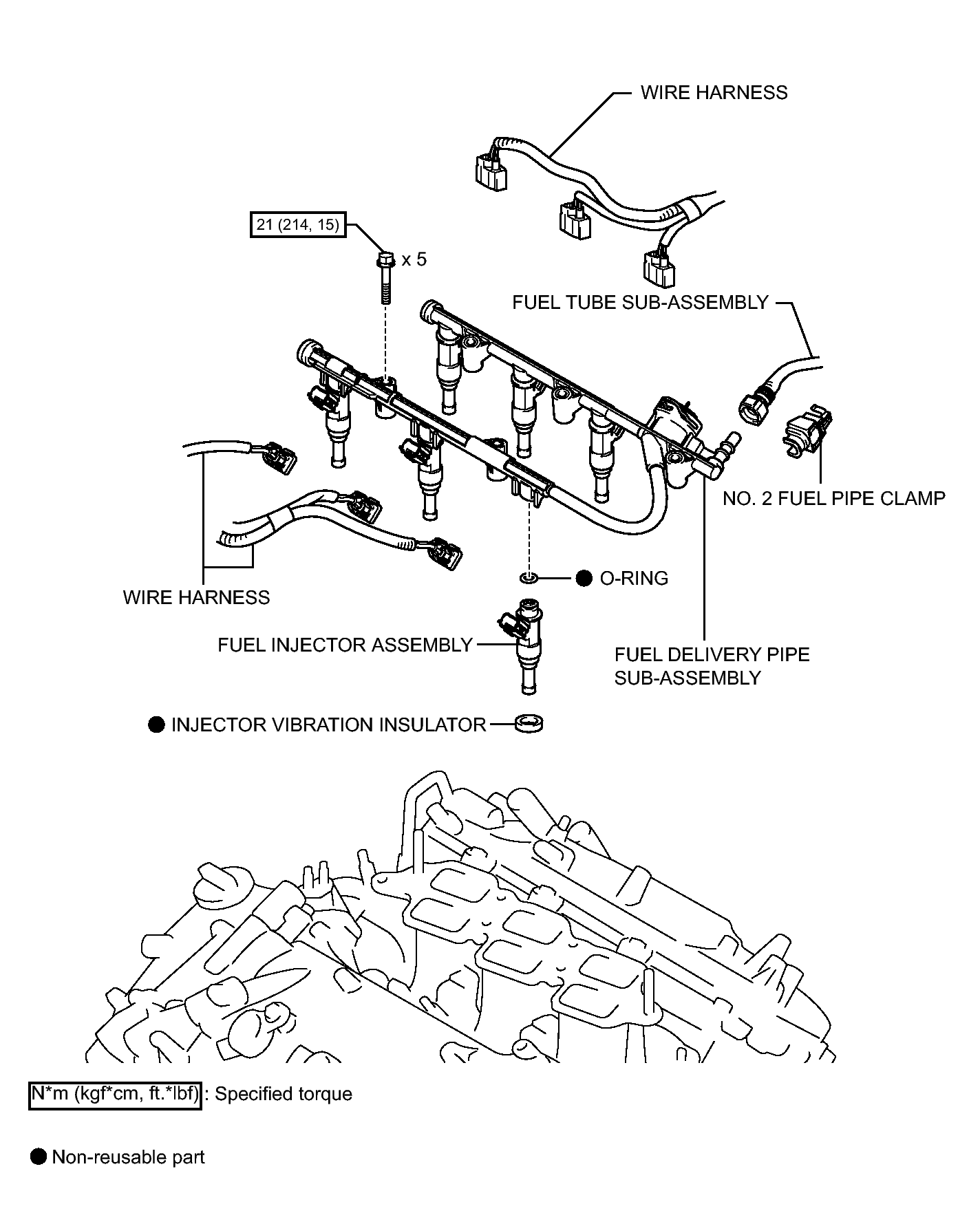

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
GTY374655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
