DTC P2118: Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

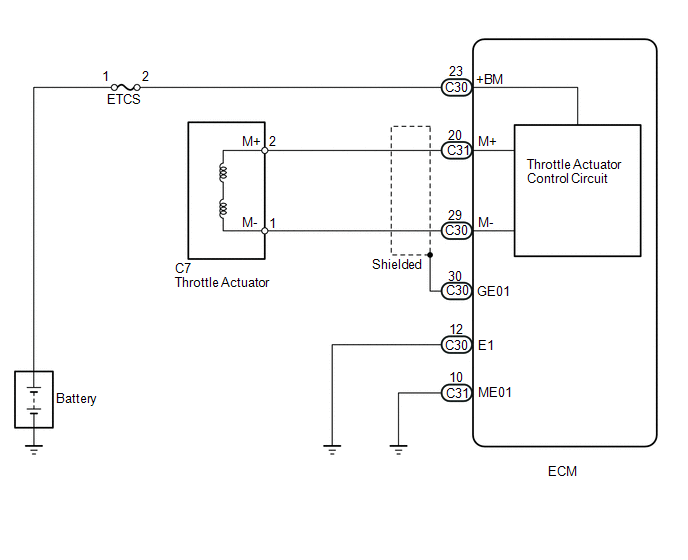

Fig 1: Electronic Throttle Control System Wiring Diagram

GTY266253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
