Hesitation On Acceleration And/Or P2119 (L-SB-0122-17)

Publication date: 2017-05-03
Reference number: L-SB-0122-17

HESITATION ON ACCELERATION AND/OR P2119

HESITATION ON ACCELERATION AND/OR P2119

TECHNICAL SERVICE BULLETIN

Reference Number(s): L-SB-0122-17, Date of Issue:  May 3, 2017
LEXUS: 2007 - 2012 LS460, LS600H
SERVICE CATEGORY: Engine/Hybrid System
SECTION: Engine Control
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002
Superceded Bulletin(s): L-SB-0033-08, Date of Issue:  May 3, 2017

APPLICABILITY

APPLICABILITY

YEAR(S) MODEL(S) ADDITIONAL INFORMATION
2007 - 2012 LS460, LS600H
NOTE: SUPERSESSION NOTICE; The information contained in this bulletin supersedes SB No. L-SB-0033-08.
  • Part numbers have been updated in the Parts Information table.
  • Calibration IDs and ECM part numbers have been updated in the Calibration Information table.

Service Bulletin No. L-SB-0033-08 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this bulletin before proceeding.

INTRODUCTION

Some 2007 - 2012 model year LS 460 and LS 600h vehicles may exhibit a hesitation on acceleration feeling due to inappropriate spark knock or detonation detection, and in some cases set Diagnostic Trouble Code (DTC) P2119 (Throttle Actuator Control Throttle Body Range/Performance). To enhance the smoothness of acceleration, the Engine Control Module/ECM (SAE term: Powertrain Control Module/PCM) calibration has been revised. In some instances, replacement of the cylinder heads may also be required. Use the REPAIR PROCEDURE  in this bulletin to address this condition.

PRODUCTION CHANGE INFORMATION FOR CYLINDER HEAD REPLACEMENT

This bulletin applies to vehicles produced BEFORE  the Production Change Effective VINs shown below.

PRODUCTION CHANGE INFORMATION

MODEL DRIVETRAIN PRODUCTION CHANGE EFFECTIVE VIN
LS 460 2WD JTHBL5EF#C5112283
4WD JTHCL5EF#C5014570
LS 460L 2WD JTHGL5EF#C5046385
4WD JTHDL5EF#C5004680
LS 600h JTHDU1EF#C5015340

WARRANTY INFORMATION

WARRANTY INFORMATION

OP CODE DESCRIPTION MODEL DRIVETRAIN TIME OFP T1 T2
EG8019 Recalibrate ECM (PCM) - - 0.4 89661-50A10
89661-50A11
89661-50A12
89661-50C00
89661-50C01
89661-50C02
89661-50C03		 04 99
110011 R & R Cylinder Head (One Side) LS 460 2WD 17.7 11101-39655
11102-39185		 50
LS 460/LS 460L 4WD 26.2
LS 600h - 28.1
Combo A R & R Cylinder Head (Opposite Side) LS 460 2WD 8.2
LS 460/LS 460L 4WD 8.4
LS 600h - 8.2

APPLICABLE WARRANTY

PARTS INFORMATION

PARTS INFORMATION

MODEL PART NUMBER PART NAME QTY
PREVIOUS NEW
ALL 11101-39655 11101-39656 Head Sub-assy, Cylinder RH 1
11102-39185 11102-39186 Head Sub-assy, Cylinder LH 1
11201-38050 11201-38051 Cover Sub-assy, Cylinder Head RH 1
11202-38020 11202-38021 Cover Sub-assy, Cylinder Head LH 1
13715-31120
13715-31150
13715-0P010		 13715-0P030 Valve, Exhaust 16
13711-38030 13711-38031 Valve, Intake 16
13734-62020 13734-0P010 Seat, Valve Spring 32
LS 460 (2WD) 89661-50A10
89661-50A11
89661-50A12
89661-50C00
89661-50C01
89661-50C02
89661-50C03
89661-50C04
89661-50C90
89661-50C91
89661-50D00
89661-50D01
89661-50D02
89661-50F20
89661-50F21
89661-50J00
89661-50J01
89661-50J02		 89661-50C05 Computer, Engine Control (ECM) -
04111-38080
04111-38081		 04111-38082 Gasket Kit, Engine Overhaul 1
LS 460 (AWD) 04111-38170
04111-38171		 04111-38172 1
LS 600h 04111-38110 04111-38111 1
ALL - 00451-00001-LBL Authorized Modifications Label 1
NOTE:
  • The ECM (PCM) should NOT be replaced as part of the Repair Procedure.
  • Authorized Modification Labels may be ordered in packages of 25 from the Materials Distribution Center (MDC) through Dealer Daily - Parts - Dealer Support Materials Orders.

REQUIRED TOOLS & EQUIPMENT

REQUIRED TOOLS & EQUIPMENT

REQUIRED EQUIPMENT SUPPLIER PART NUMBER QTY
Techstream 2.0(1) ADE TS2UNIT 1
Techstream Lite TSLITEPDLR01
Techstream Lite (Green Cable) TSLP2DLR01
(1) Essential SST.
NOTE:
  • ONLY ONE of the Techstream units listed above is required.
  • Software version 12.00.125 or later is required.
  • Additional Techstream units may be ordered by calling Approved Dealer Equipment (ADE) at 1-800-368-6787.
REQUIRED TOOLS & EQUIPMENT

REQUIRED TOOLS & MATERIAL QUANTITY
Toyota Genuine Seal Packing Black, Three Bond 1207B, or Equivalent As Needed
REQUIRED TOOLS & EQUIPMENT

SPECIAL SERVICE TOOLS (SST) PART NUMBER QTY
GR8 Battery Diagnostic Station(1) 00002-MCGR8  1
Valve Service Tool Set (Valve Spring Compressor) 00002-53464C-02  (09202-70020) 1
Starter Armature Bearing Replacer 09201-41020  1
Crankshaft Pulley Holding Tool(1) (Bolt) 09213-54015-02  (90119-08216-01) 1
Companion Flange Holding Tool(1) 09330-00021  1
Universal Puller Set "C"(1) 09950-50013-01  1
(1) Essential SST.
NOTE: Additional SSTs may be ordered by calling 1-800-933-8335.

CALIBRATION INFORMATION (2WD ONLY)

NOTE: Reflash calibration ONLY applies to 2WD vehicles.
CALIBRATION INFORMATION

MODEL MODEL YEAR OPTIONS CALIBRATION ID
PREVIOUS NEW
LS 460/460L 2007 - 2008 - 35036000
35036100
35036200
35055000
35055100
35055200
35055300
35055400		 35055500
2009 35066000
35066100
35066200		 35066300
2010 - 2011 35088000
35088100
350B6000
350B6100		 350B6200
Sport Package Brembo Brakes 35088001
35088101
350B6001
350B6101		 350B6201
2012 - 350D2000 350D2100
Sport Package Brembo Brakes 350D2001 350D2101

DIAGNOSTIC PROCEDURE

NOTE:
  • ONLY complete the Diagnostic Procedure if the cylinder heads were NOT previously replaced per original L-SB-0038-08.
  • If cylinder heads were previously replaced, go to the REPAIR PROCEDURE .
  1. Connect Techstream unit and test drive the vehicle. Record ALL data duplicating the concern. Review the Knock Correct Learn Value and the Ignition (IGN) Advance.
  2. If the Knock Correct Learn Value drops from 17.0 CA to below 12.0 CA, and the IGN Advance goes to a negative (-) degree value while duplicating the concern, continue to step 3.

    If the values are comparable to a known good vehicle, the concern may NOT be related to this bulletin - diagnose per the Technical Information System (TIS) depending upon symptoms.

  3. Check the condition of the spark plugs and valve guides.
    • If 1 or more of the spark plugs has a brown residue on the porcelain and electrode, continue to the REPAIR PROCEDURE .
    • If the spark plugs appear normal, confirm that the valve stem oil clearance is within specification.

      Maximum Oil Clearance:

      Intake: 0.08 mm (0.0031 in.)

      Exhaust: 0.1 mm (0.0039 in.)

    If greater than specification, continue to the REPAIR PROCEDURE .

    If neither of these conditions are abnormal, the condition may NOT be related to this bulletin.

    Continue diagnosis using the applicable Repair Manual.

REPAIR PROCEDURE

NOTE:
  • For 2007 - 2012 MY 2WD LS 460 and 2WD LS 460L vehicles ONLY: Begin at step  1.
  • For 2009 - 2012 MY 4WD LS 460, 4WD LS 460L and LS 600h vehicles: Begin at step  4.
LSB APPLICABILITY

LSB APPLICABILITY
MODEL YEAR LS 460 LS 460/600h
2WD 4WD
CYLINDER HEAD REPLACEMENT REFLASH CYLINDER HEAD REPLACEMENT REFLASH
2007 Applicable(1) Applicable Not Applicable Not Applicable
2008
2009 Applicable(1)
2010
2011
2012 Applicable(2) Applicable(2)
(1) ONLY applicable if cylinder heads were NOT previously replaced per original L-SB-0033-08.
(2) Verify VIN breaks to confirm applicability.

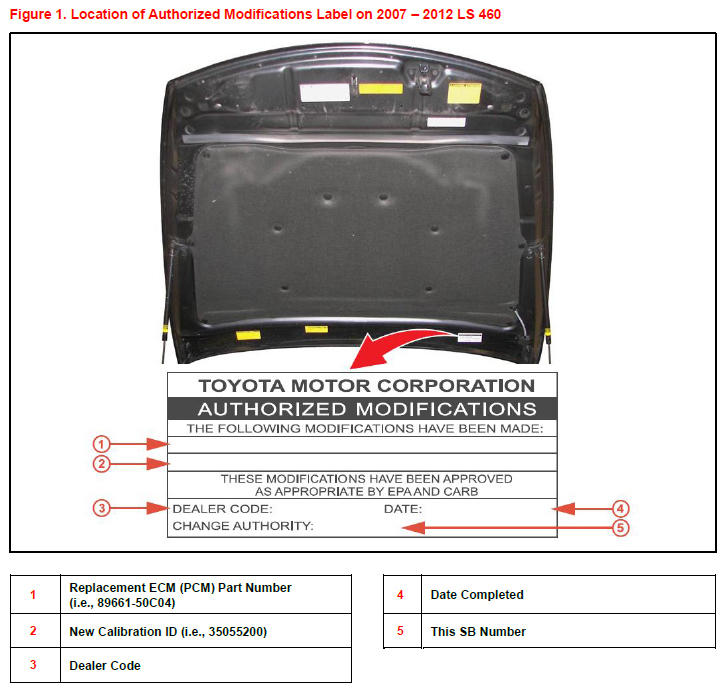

  1. Check for the Authorized Modifications Label affixed to the vehicle in the location shown. Confirm if the ECM (PCM) calibration has been updated.
    G11345344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Flash reprogram the ECM (PCM).
    NOTE:
    • The GR8 Battery Diagnostic Station MUST be used in Power Supply Mode to maintain battery voltage at 13.5V while flash reprogramming the vehicle.
    • For details on how to use the GR8 Battery Diagnostic Station, refer to the GR8 Instruction Manual  located on the Technical Information System (TIS), Diagnostics - Tools & Equipment - Battery Diagnostics  .
  3. Prepare and install the Authorized Modifications Label.
    1. Using a permanent marker, enter the following information on the label:
      • ECM part number [Refer to the PARTS INFORMATION section for the CURRENT PART NUMBER]
      • Calibration ID(s) [Refer to the CALIBRATION IDENTIFICATION CHART for the NEW CALIBRATION ID]
      • Dealer Code
      • Repair Date
      • Change Authority [This bulletin number]
    2. Install the Authorized Modifications Label to the vehicle at the location shown in Figure 1. The Authorized Modifications Label is available through the MDC, P/N 00451-00001-LBL.
      NOTE: If the cylinder heads were previously replaced in L-SB-0033-08, do NOT replace them again.
  4. Replace both valve cover assemblies, both cylinder heads and ALL intake and exhaust valves for the left and right cylinder banks.

    Refer to TIS, applicable model and model year Repair Manual:

    • 2007 LS 460:

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly  "

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2008 LS 460:

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

    • 2008 LS 460:

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2009 LS 460:

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2010 LS 460:

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2011 LS 460:

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2012 LS 460:

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

      Engine/Hybrid System - Engine Mechanical - "1UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2008 LS 600h:

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2009 LS 600h:

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2010 LS 600h:

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

    • 2011 LS 600h:

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Removal"

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket Disassembly  /Reassembly"

      Engine/Hybrid System - Engine Mechanical - "2UR-FSE Engine Mechanical: Cylinder Head Gasket (for Bank 1)  /(for Bank 2)  : Installation"

  5. Reconnect the negative (-) battery terminal.
  6. Reinitialize ANY affected power systems.

    Refer to TIS, applicable Service Bulletin or Repair Manual:

    • 2007 LS 460: Service Bulletin PD007-07  , "Power System Initialization During PDS  "
    • 2008 LS 460/600h: Service Bulletin L-SB-0041-08  , "Power System Initialization During PDS  "
    • 2009  /2010  /2011  /2012  LS 460:

      General - Introduction - "Introduction: Repair Instruction: Initialization"

    • 2009  /2010  /2011  /2012  LS 600h:

      General - Introduction - "Introduction: Repair Instruction: Initialization"

  7. Test drive the vehicle to confirm hesitation on acceleration and/or P2119 is no longer present.
