Wiring Diagram - F/FOG -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER

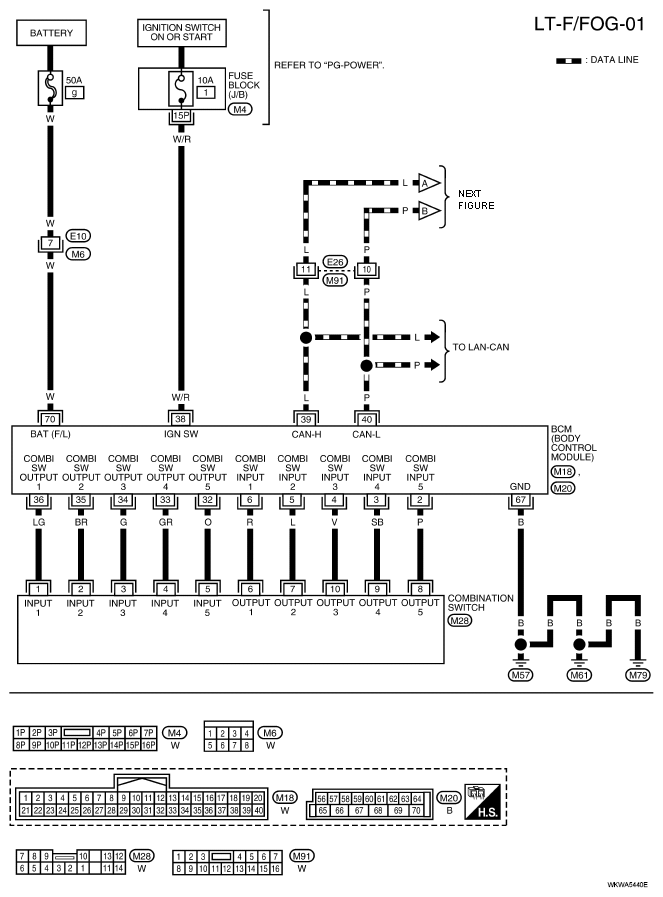

Fig 1: Identifying Wiring Diagram - LT-F/FOG-01
G04913812
Fig 2: Identifying Wiring Diagram - LT-F/FOG-02
G04913813
