Display Signal Circuit between Multi-display Controller and Television Display: Wiring Diagram

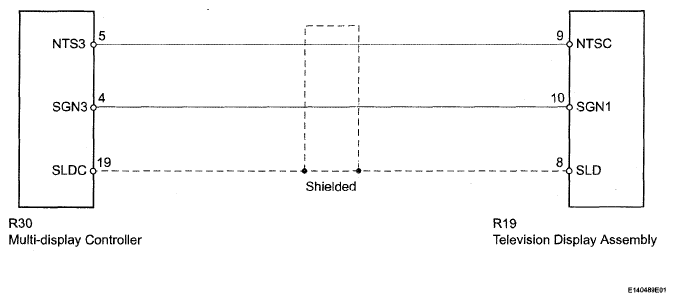

Fig 1: Identifying Display Signal Circuit Between Multi-Display Controller And Television Display - Wiring Diagram
G04953957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
