INITIALIZATION OF MOON ROOF DURING PDS

TECHNICAL SERVICE BULLETIN

Reference Number(s): PD049-06, Date of Issue: August 10, 2006

LEXUS:	2007 GX 470
Section:	PRE-DELIVERY SERVICE
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

This bulletin outlines the initialization procedure for the moon roof on the 2007 model year GX 470.

If the battery has been disconnected, the moon roof ECU will not be able to detect and memorize the moon roof positions, resulting in the following features being inoperative.

One-touch tilt up and down with jam protection.
One-touch slide open and close with jam protection.

Use the following procedure to initialize the moon roof during PDS and whenever the battery has been disconnected.

Applicable Vehicles

2007 model year GX 470 vehicles.

Initialization Procedure

With ignition switch in the "ON" position, do the following:

Push and hold the "TILT UP" side of the switch until the moon roof tilts all the way up and then tilts down slightly (approximately 10 mm [0.39 in.] at the rear).
Check for proper operation of the "One-touch slide open/close" and "One-touch tilt up/down" functions by pushing the switch briefly to the "SLIDE OPEN" and "TILT UP" positions.
NOTE: Jam protection function becomes effective through the above initialization procedure.

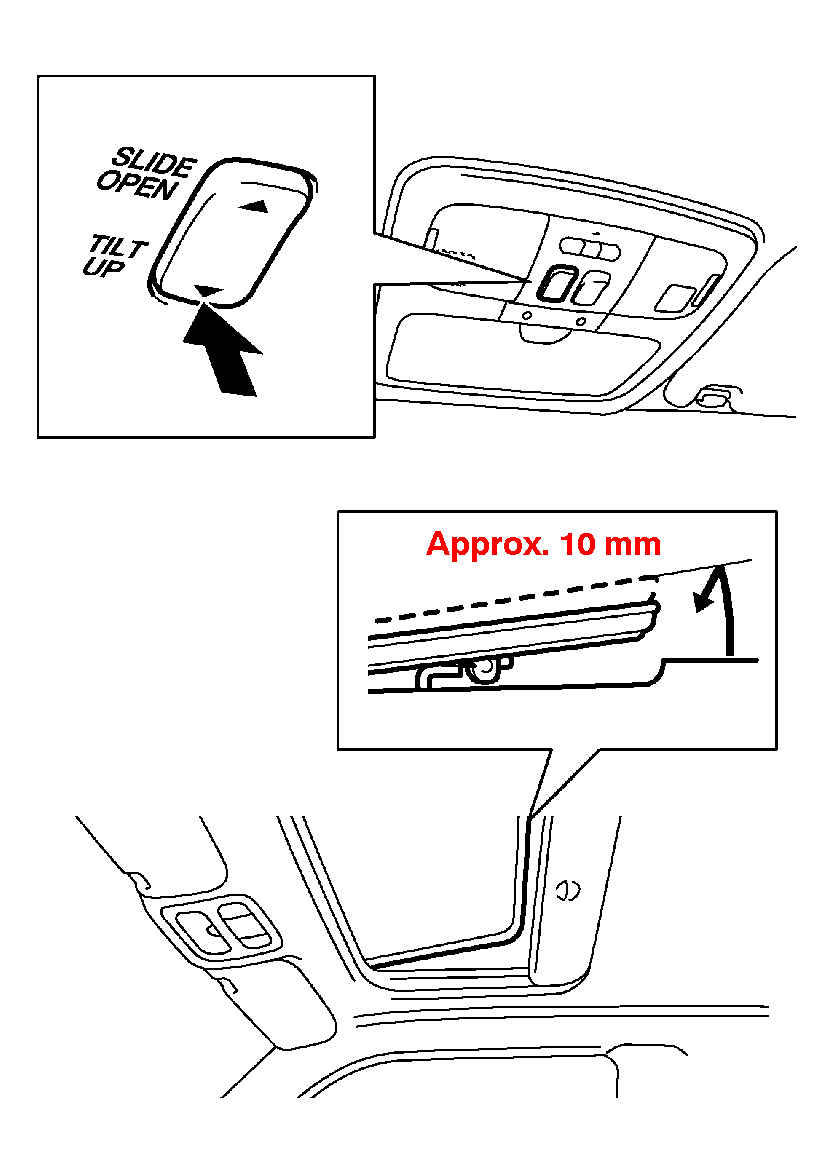

Fig 1: Identifying Moon Roof Switch & Window Positions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-
