Reassembly & Installation
WARNING: This page is about a different car, the 2000 Lexus SC 300, 2000 Lexus GS 300, 1999 Lexus SC 300, and 1999 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

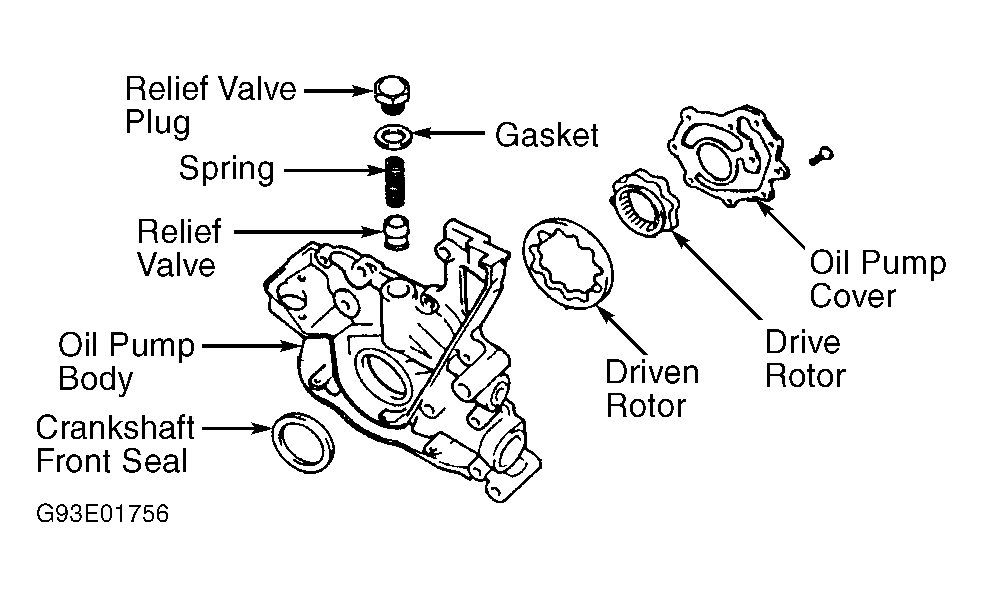

- To reassemble, reverse disassembly procedure. Ensure drive and driven rotors are installed in oil pump body with reference mark (triangle mark) toward oil pump cover. Tighten oil pump cover bolts and relief valve plug to specification. See TORQUE SPECIFICATIONS .
- To install, ensure sealing surfaces are clean. Install NEW "O" rings on cylinder block. Apply sealant on oil pump body.CAUTION: Ensure sealant does not enter oil passages on oil pump body.
- Install oil pump and bolts. Ensure 2 long bolts are installed in 2 lower bolt holes on intake manifold side of cylinder block. Tighten oil pump bolts to specification. See TORQUE SPECIFICATIONS .
- If installing crankshaft front seal, use hammer and seal installer. Install seal until seal surface is even with oil pump body. Apply grease to sealing lip of seal. To install remaining components, reverse removal procedure.
