Home >> Land Rover >> 2008 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

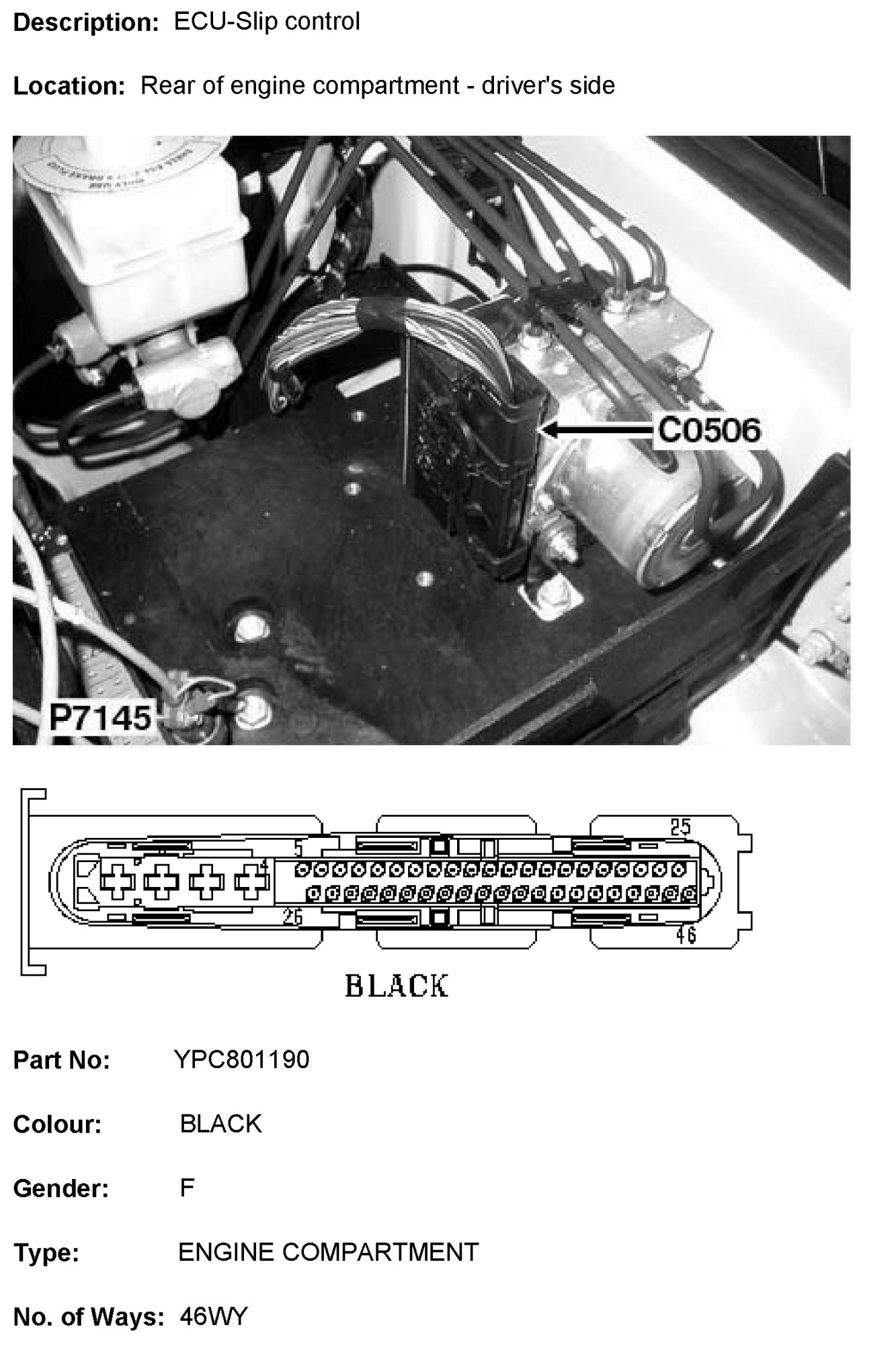

Traction Control Module

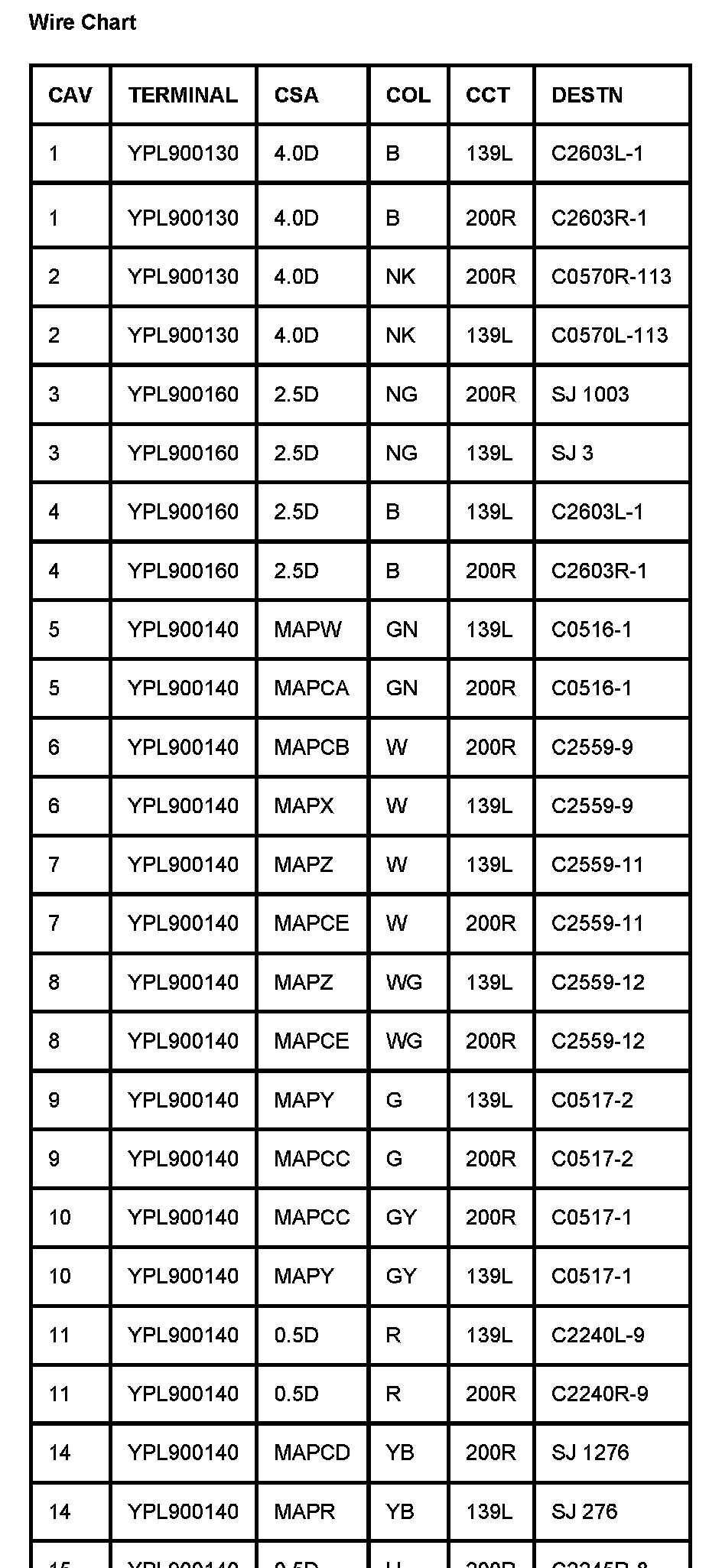

C0506 (Part 1):

��aC0506 (Part 2):
