Gaiter - Pas Rack: Removal

  1. Remove PAS rack. See POWER STEERING RACK .
  2. Hold PAS rack securely and remove 2 Torx bolts securing track rods. Discard bolts. See Fig 1.
    3. Fig 1: Removing Track Rods From PAS Rack
    G00386389Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Remove support plate.
  4. Remove track rods and spacers.
    CAUTION: Note orientation of spacers before dismantling.
  5. Remove clips from PAS rack ram feed pipes. See Fig 2.

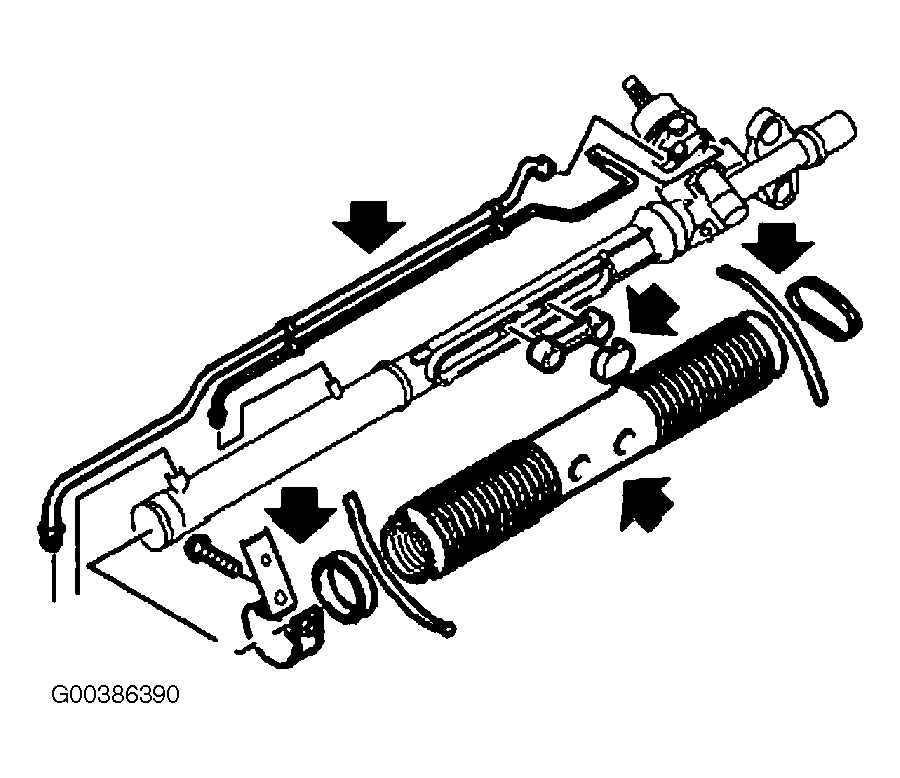

    6. Fig 2: Removing PAS Rack Ram Feed Pipes
    G00386390Courtesy of LAND ROVER NORTH AMERICA, INC.
  6. Loosen 4 pipe unions and remove both ram feed pipes.
    CAUTION: Always fit plugs to open connections to prevent contamination.
  7. Remove clamp bolt from fluid pipe support bracket and remove bracket.
  8. Remove 2 gaiter securing clips.
  9. Remove gaiter sealing ring.
  10. Remove gaiter.
  11. Remove gaiter sealing band.
  12. Remove slider and clip assembly.
  13. Remove clip from slider.
