Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

2. Remove the front seat shield outer cover.

   (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

3. Remove the front seat shield inner cover.

   (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

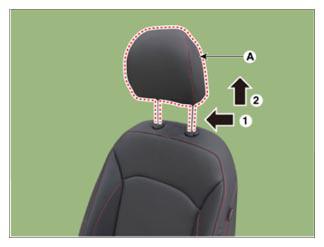

4. Push the lock pin, remove the front seat headrest (A).

   Courtesy of KIA MOTORS AMERICA, INC.

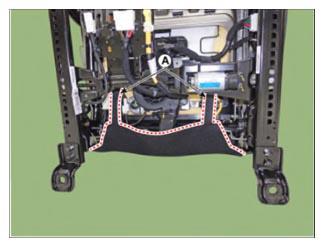

5. Remove the front seat lower protector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

6. Disconnect the airbag connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

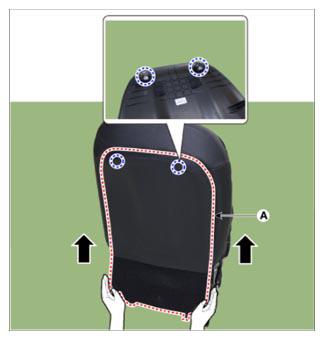

7. Remove the front seat back board (A).
   1. Seperate the upper back cover by pushing the lock pin in the direction of the arrow.
   2. Remove the front seat back cover by lifting in the direction.

   Courtesy of KIA MOTORS AMERICA, INC.

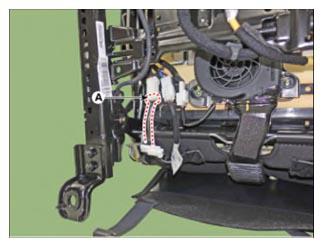

8. Disconnect the seat back heater connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

9. Disconnect the front seat air back ventilation duct (A).

   Courtesy of KIA MOTORS AMERICA, INC.

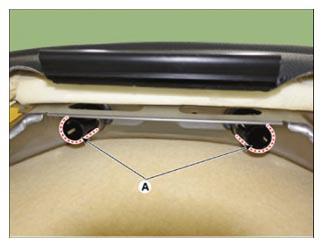

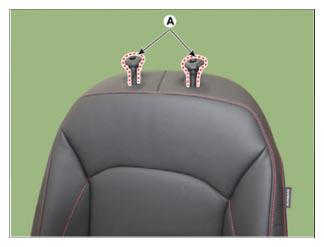

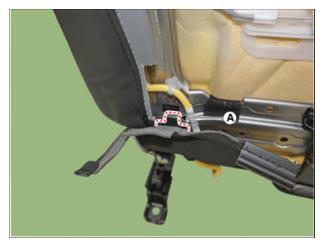

10. Turn the front seat back cover inside out. Then pull out and remove the headrest guides (A) while pinching both sides of the lower part of the guides.

    Courtesy of KIA MOTORS AMERICA, INC.

    Courtesy of KIA MOTORS AMERICA, INC.

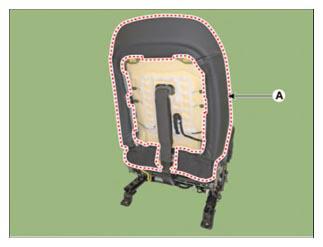

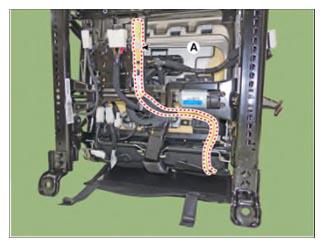

11. Remove the protector (A) from the front seat back frame.

    Courtesy of KIA MOTORS AMERICA, INC.

    Courtesy of KIA MOTORS AMERICA, INC.

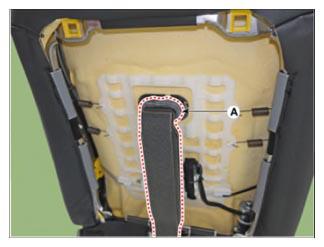

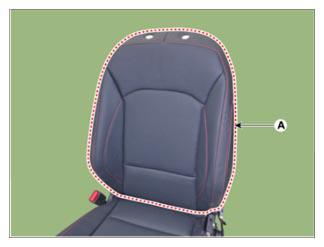

12. Remove the front seat back assembly (A) from the front seat back frame.

    Courtesy of KIA MOTORS AMERICA, INC.

13. After removing the velcro tape (A) and hog - ring clips (B) inside the front seat back cover, remove the seat back covering (C).
    CAUTION: Be careful not to allow the sponge insert wire to separated in its place.

    Courtesy of KIA MOTORS AMERICA, INC.

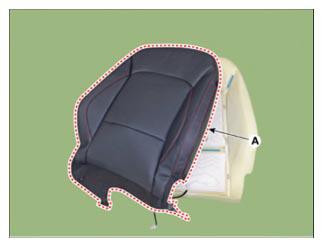

14. Remove the front seat back cover (A) from the front seat back pad.

    Courtesy of KIA MOTORS AMERICA, INC.

15. To install, reverse removal procedure.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips (or pin-type retainers).

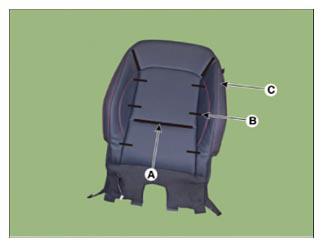

    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

Courtesy of KIA MOTORS AMERICA, INC.
