Component Inspection

Inspection Condition	Inspection Procedure	Reference

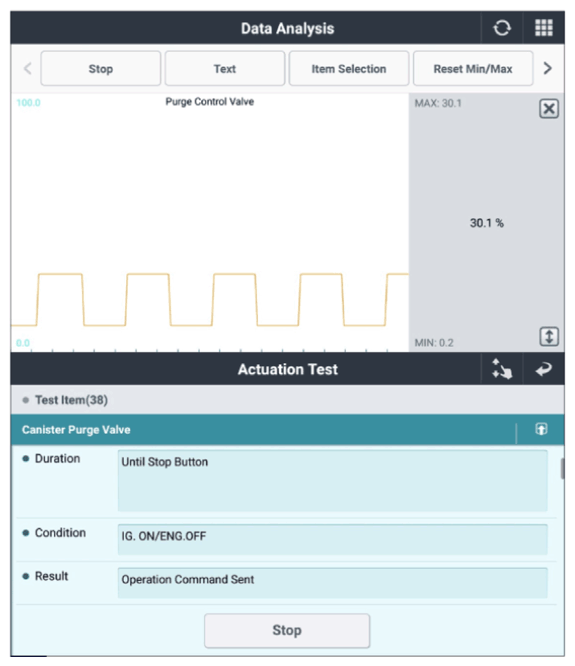

Ignition "ON". Engine "ON" and over 2000RPM.	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Figure 1 below

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the PCSV and go to "VERIFICATION OF REPAIR " procedure.
